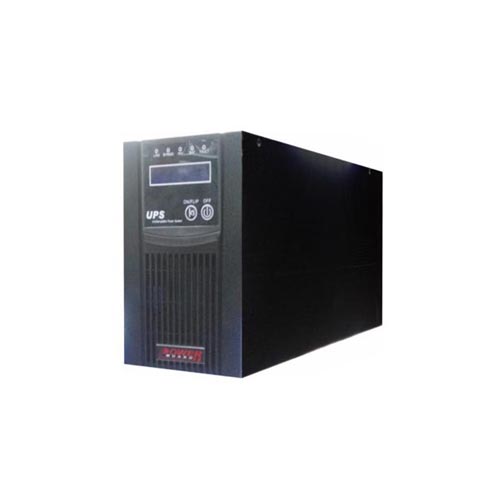

Power Guard 3KVA Online Standard Backup UPS:
| Efficiency |
To AC Mode: 93%
To Battery Mode: 87% |
| Input |
Nominal Voltage: 200/208/220/230/240VAC
Input Voltage Range: 110-280 VAC (Based on Load at 50%)
Frequency Range: 46Hz-54Hz / 56Hz-64Hz
Phase: Single phase with ground
Power Factor: R0.99 @ nominal voltage (100% load) |
| Battery |
Battery Type: 12 V / 8.2Ah
Numbers: 6
Typical Recharge Time: 4 hours recovery to 90% capacity
Charging Current (max.): 1.0A
DC Voltage: 72 VDC |
| Output |
Output Voltage: 200/208/220/230/240VAC
Voltage Regulation: ±1%
Frequency Range (Synchronized Range): 46 ~ 54 Hz or 56 ~ 64 Hz
Frequency Range (Batt. Mode): 50 Hz or 60 Hz ±0.1%
Current Crest Ratio: 3:01 |
| Basic Information |
Model: PG 3 KVA Online UPS (S)
Capacity: 3000 VA / 3000W |
| Indicators |
LED Panel: UPS status, Load level, Battery level, Input/Output voltage, and Fault conditions |
| Alarm |
Battery Mode: Sounding every 4 seconds. Low Battery: Sounding every second. Overload: Sounding twice every second. Fault: Continuously sounding |
| Management |
Smart RS-232: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
Dimension(mm): 497x497x365
Warranty: 01 Year Battery & Service with Spare Parts |
What is the price of the Power Guard 3KVA Online Standard Backup UPS in Bangladesh?
The latest price of the Power Guard 3KVA Online Standard Backup UPS in Bangladesh is 37,500৳. You can buy the Power Guard Online Standard Backup UPS at the best price from our website or visit our showroom. Please stay connected with our What's Page or
