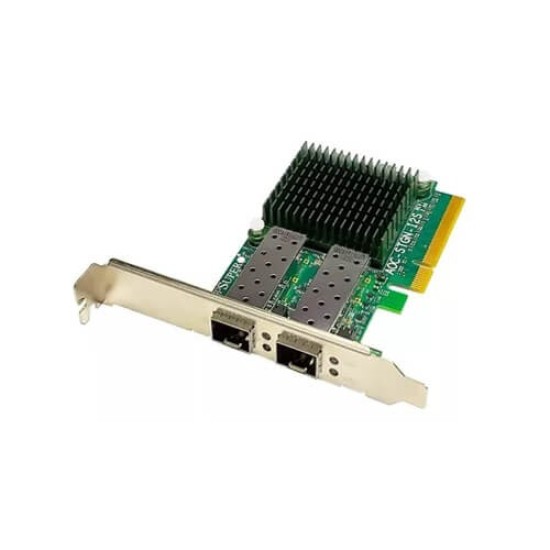

Supermicro AOC-STGN-i2S 10G 2-Port SFP Server Lan Card:
The Ultimate Dual-Port 10 Gigabit Ethernet Controller with the Flexibility and Scalability required for Virtual and Unified Storage Environments. The latest member of Supermicro’s network adapter family, the AOC-STGN-i2S is the most flexible and scalable Ethernet adapter for today’s demanding data center environments. Based on the new Intel® 10GbE network controller 82599ES, the AOC-STGN-i2S addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
-
- Key Features
- Dual SFP+ Connectors
- Low-Profile Standard Form Factor
- PCI Express 2.0 (up to 5GT/s)
- Intel® QuickData Technology
- VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
- Load Balancing on Multiple CPUs
- iSCSI Remote Boot Support
- Fibre Channel over Ethernet (FCoE) Support
- Support for most Network Operating Systems (NOSs)
- RoHS compliant 6/6
- General:
- – Intel® 82599ES 10GbE controller
- – Compact size low-profile standard form factor
- – PCI-E x8 2.0 (5GT/s)
– Load balancing on multiple CPUs
– iSCSI remote boot support
– Fibre Channel over Ethernet (FCoE) Support
– Intel® PROSet Utility for Windows® Device Manager
- I/O Features:
– Intel QuickData Technology: DMA engine that enhances data acceleration and lowers CPU usage
– Direct Cache Access (DCA) to avoid cache misses
– MSI-X support to minimize the overhead of interrupts and allows load-balancing between multiple cores/CPUs
– Tx/Rx IP, SCTP, TCP, and UDP checksum offloading capabilities (IPv4, IPv6)
– Receive and Transmit Side Scaling for Windows environments and Scalable I/O for Linux environments
- Virtualization Features:
– IPv6 Offloading
– Advanced Packet Filtering
– VLAN support to allow the creation of multiple VLAN segments
- Manageability Features:
– Pre boot execution Environment (PXE) support
– Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters
– iSCSI remote boot
- OS Support:
– Windows Server 2012 (x64 Edition)
Windows 8 (x64 Edition and 32-bit)
Windows Server 2008 R2 (x64 Edition, 64-bit)
Windows Server 2008 (x64 Edition, 64-bit, and 32-bit)
Windows 7 (x64 Edition and 32-bit)
Windows Vista (x64 Edition and 32-bit)
Windows Server 2003 (x64 Edition, 64-bit, and 32-bit)
– VMWare
– RedHat EL, SUSE SLES
– Free BSD
- Cables Support:
– SFP+ directly attached twin axial cables, up to 10 meters
– Dual LC fiber-optic SR cables, up to 300 meters
- Operating Conditions:
– Operating temperature: 0°C to 55°C
- Physical Dimensions:
– Card PCB dimensions: 10.16cm (4.00in) x 6.90cm (2.73in)
– Height of end brackets: standard – 12cm (4.725in), low-profile – 7.94cm (3.13in)
