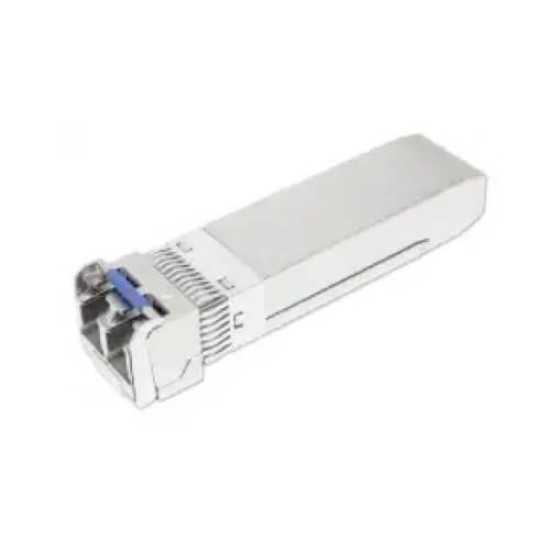

Ficer FSPP-H7-S13-10D 10G-LR SM LC Duplex SFP+

Ficer FSPP-H7-S13-10D 10G-LR SM LC Duplex SFP+ Module:

The Ficer FSPP-H7-S13-10D is a small form-factor pluggable plus (SFP+) transceiver transmitting data at high speeds over single-mode fiber optic lines. It complies with several standards, including IEEE 802.3ae 10GBASE-LR/LW, CPRI Option 7, 8, and SFF-8431 SFP+ MSA. It includes a multi-rate capability ranging from 8.5 Gb/s to 11.32 Gb/s and a hot pluggable feature that allows it to be introduced or withdrawn without disrupting the network. To broadcast and receive optical communications, it employs a 1310nm DFB laser transmitter and a duplex LC connection. The Ficer H7-S13-10D 10G-LR 1310nm SM LC Duplex SFP+ Transceiver also contains an SFF-8472-compliant 2-wire interface for management and diagnostic monitoring. It is powered by a single +3.3V source and has a connection distance of up to 10km via SM fiber. It is also RoHS compliant, which means it contains no dangerous compounds. The Ficer H7-S13-10D is an excellent solution for high-performance and dependable fiber optic communication applications.
