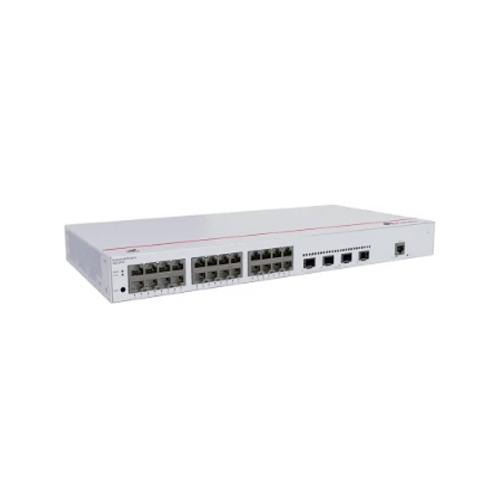

Huawei eKit S220-24P4X 24-Port Gigabit PoE Managed Switch
The Huawei eKitEngine S220-24P4X is a versatile 24-port Gigabit PoE web-managed switch designed for demanding network settings that require Power over Ethernet (PoE) functionality. With a significant switching capacity of 128 Gbps and a packet forwarding rate of 95Mbps, this switch ensures reliable and effective data transfer. It features four 10GE SFP+ uplink ports for multiple connectivity options and twenty-four 10/100/1000BASE-T PoE+ ports, which can deliver up to 400 W of power. The inbuilt AC power module can handle high-voltage DC input and runs between 100 and 240 V AC at 50/60 Hz. The maximum power consumption of the Huawei eKitEngine S220-24P4X 24 Port Gigabit PoE WEB-Managed Switch is 485.91 W when the PoE load is fully loaded and 44.35 W when it is not. It effectively controls heat dissipation; in full PoE load conditions, typical values can reach up to 1657.92 BTU/hour. With an MTBF of 60.18 years and an MTTR of 2 hours, the switch demonstrates operational resilience, achieving an availability of over 99.999%. Strong surge protection is provided, with the power supply and service ports shielded up to ±6 kV and ±7 kV, respectively. With a dual-core CPU operating at 1.1 GHz, 2 GB of RAM, and 1 GB of flash storage, the switch offers dependable network administration and processing. Built for longevity and reliable performance in a variety of networking applications, the Huawei eKitEngine S220-24P4X 24 Port Gigabit PoE WEB-Managed Switch is certified for IP20 ingress protection, EMC, safety, and manufacturing requirements.
| Main Feature |
| Type | PoE WEB-Managed Switch |
| Port | Uplink ports: 4 x 10GE SFP+ ports
Downlink ports: 24 x 10/100/1000BASE-T ports |
| Data Transmission Rate | Switching Capacity: 128 Gbps
Packet Forwarding: 95 Mpps |
| Hardware Features |
| LED | Port indicator
SYS indicator
CLOUD indicator |
| Power Supply | Without PoE: 44.35 W
Full PoE load: 485.91 W (PoE: 400 W) |
| Dimensions (L x W x H) | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight | 2.92 kg (6.44 lb) |
What is the price of the Huawei eKit S220-24P4X 24-Port Gigabit PoE Managed Switch in Bangladesh?
The latest price of the Huawei eKit S220-24P4X 24-Port Gigabit PoE Managed Switch in Bangladesh is 45,000৳. You can purchase the Huawei eKit S220-24P4X 24-Port Gigabit PoE Managed Switch at the best price from our website or visit our showroom. Please stay connected with our What’s Page or Facebook Page.
