SafeNet Cat6 23AWG LSZH Solid UTP Cable 305M | 32-3351GR

SafeNet Cat6 23AWG LSZH Solid UTP Cable 305M | 32-3351GR:

SAFENET 4-Pair U/UTP Cat6 LSZH cable has been designed to support high-speed data transmission systems such as Gigabit Ethernet for mission-critical LAN applications or future-proofing Structured Cabling Systems. The cable is characterized to 250MHz and Powersum NEXT tested. We confirm that the cable is used in a system to maximize cabling performance, providing extended frequency response and enhanced.

Complied Standards

• ISO/IEC 11801:2011(Ed.2.2)
• IEC 61156-5:2009(Ed.2.0)

• EN 50173-1:2011

• EN 50173-2:2007 including amendment A1:2010

• ANSI/TIA-568-C.2:2009

• TIA/EIA-568B.2-2001

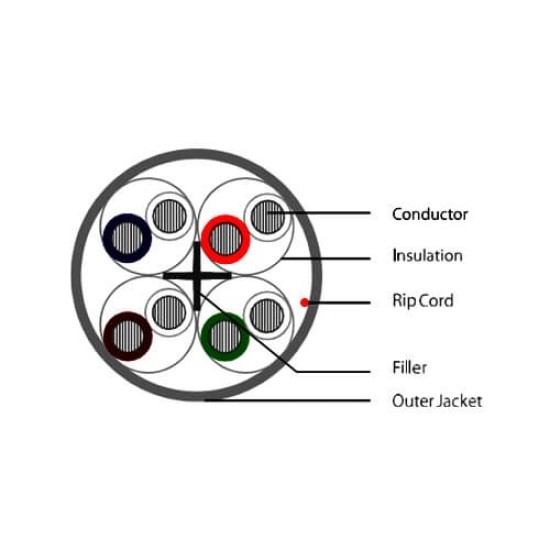

Products Characteristics

• Conductor Diameter: 0.57mm ± 0.008mm

• HDPE Solid Insulation: 1.02mm ± 0.02 mm

• HDPE Filler: 4.5* 0.45mm

• Outer Jacket Thickness: ≥ 0.50mm

• External Diameter: 6.2mm±0.5mm

• Linear Resistance: Max.<85Ω/km

• Mutual Capacity (nom.): 5.6nF/100M

• Unbalance Capacity Max (p/p at 1 KHz): 1500 pF/km

• Characteristic Impedance (1 to 100 MHz): 100 ±15Ω

• Velocity OF Propagation (f>1 MHz): 69% of c

Key Feature

• Compliant with TIA-568.2-D Category 6 cable specifications

• 23 AWG SOLID-Bare Copper Conductor

• Characterized and tested up to 250MHz

• 4 Pair with LSZH Outer Jacket

• ROHS Compliant & UL Approval, DELTA, GHMT

• Print legend contains footage marking from 305M to 001M

Application

• IEEE 802.3: 1000BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T

• ANSI/TIA/EIA-854: 1000BASE-TX

• 155 Mb/s, 1.2 Gb/s ATM

• ANSI X3.263: 100 Mb/s

• IEEE 802.3af DTE Power (POE)

• 4/16 Mb/s Token Ring

• Digital Video

• Broadband and Baseband Analog Video
