Panduit Netkey Cat6 UTP Copper Cable 305M | NUC6C04BU-FE

Name: Panduit Netkey Cat6 UTP Copper Cable 305M | NUC6C04BU-FE
Brand: Panduit
Price: 22500.00 BDT
Availability: InStock

-12 %

Panduit Netkey Cat6 UTP Copper Cable 305M | NUC6C04BU-FE

Price: 25,500৳
special price: 22,500৳
Status: In Stock
Brand: Panduit
Model: Cat6 UTP Cable

Based on 0 reviews. - Write a review

22,500৳

25,500৳

Ex Tax: 22,500৳

WhatsApp Inquiry

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

- Jacket material: PVC
- Part No: NUC6C04BU-FE
- Product Type: Copper Cable
- Insulation Material: HDPE, Color: Blue

Description
Review

Panduit Netkey Cat6 UTP Copper Cable | NUC6C04BU-FE:

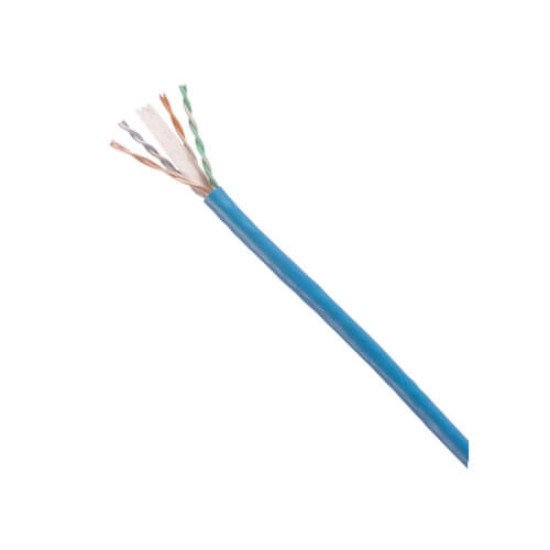

This NetKey CAT6 U/UTP copper cable is made with 24 AWG (American Wire Gauge) copper code conductors with high-density polyethylene insulation so you can use it for a long time without interruption. The NK6™ Cat 6 copper cable is constructed of 24 AWG copper conductors with high-density polyethylene (HDPE) insulation. The copper conductors shall be twisted in pairs and separated by a cross divider and covered by a flame-retardant PVC (CM) blue jacket.

Note	Available in Latin America, Asia Pacific, and EMEA
Environment	Indoor
Performance Level	Category 6
Cable Construction	U/UTP
Flammability Rating	CM
EuroClass Rating	Eca
LP Rating	NA
Resistance Properties	Flame Retardant
Jacket Material	Polyvinyl Chloride (PVC)
Nominal Cable Outside Diameter (In.)	0.222
Nominal Cable Outside Diameter (mm)	5.6
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	60
Minimum Operating Temperature (°F)	140
Maximum Installation Temperature (°C)	50
Maximum Installation Temperature (°F)	122
Minimum Installation Temperature (°C)	0
Minimum Installation Temperature (°F)	32
Sub Brand	NetKey®
Maximum Installation Tension (lb)	25
Maximum Installation Tension (N)	110
Bend Radius (In.)	0.888
Bend Radius (mm)	22
Number of Pairs	4
Conductor Material	Copper
Conductor Type	Solid
Overall Length	305M
Conductor Gauge (AWG)	24
Insulation Material	HDPE
Acidity Rating	NA
Insulation Diameter (In.)	0.036
Insulation Diameter (mm)	0.92
Maximum Voltage (V)	80
Standards Met	Exceeds ISO 11801 Class E and ANSI/TIA-568.2-D Category 6, IEC 61156-5, UL 1685, EN 50575: Euroclass Eca, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant.
Color	Blue
Flaming Droplets Rating	NA
Overall Length (ft.)	1000
Packaging Type	Easy Payout Carton
Product Type	Copper Cable
Smoke Rating	NA
EuroClass Flame Rating	Eca
Part Features	copper cable
