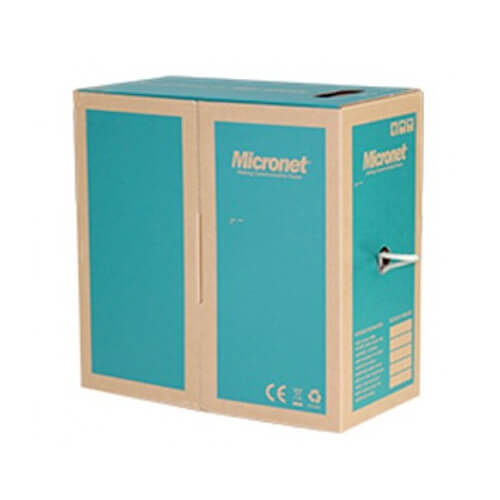

Micronet SP1101S Cat6 UTP Cable 305M (Original)

Micronet SP1101S Cat6 UTP Cable 305M (Original)
-12 %
Micronet SP1101S Cat6 UTP Cable 305M (Original)
  • Special Price: 21,600৳
  • Regular Price: 24,500৳
  • Status: In Stock
  • Brand: Micronet
  • Model: SP1101S (Original)
Based on 0 reviews. - Write a review
21,600৳
24,500৳
Ex Tax: 21,600৳
WhatsApp Inquiry
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

    • Brand: Micronet
    • Model: SP1101S
    • Type: Cat6 UTP Cable
    • Construction: Solid Bare Copper
    • Temp Voltage: 75°C 300V, Spark Test: 2.5KV
    • Made By: Made in Taiwan
Micronet Cat6 UTP Cable 305M
Model SP1101S
Category Cat.6
Cable Type UTP
Wiring Standard ANSI/TIA-568-C.2 & UL444 & ISO/IEC 11801
Length (M) 305
Certification UL
Conductor Size: 24Awg Construction: Solid Bare Copper Cond. Diam.: 1/0.540±0.02 mm
Insulation Avg. Thick.: 0.22 mm Min. Thick.: 0.21 mm Diameter: 0.98 ± 0.02 mm Material: Polyolefin (PO) Color Codes: Blue × White/Blue Stripe Orange × White/Orange Stripe Green × White/Green Stripe Brown × White/Brown Stripe Unaged Tensile Strength: 2400 Psi Min. (1.69 Kg/M M2) Unaged Elongation: 300% Min. Aged Tensile Strength: Unaged Min. 75% (100°C x 48Hrs) Aged Elongation: Unaged Min. 75% (100°C x 48Hrs)
Shielded Pair Stranded: 2 Cores Stranded Filler(Slot): Polyolefin (PO) Assembly Stranded: 4 Pair Stranded
Jacketed Avg. Thick.: 0.50 mm Min. Thick.: 0.45 mm Diameter: 5.80 ± 0.2 mm Material: FR PVC Color: Gray or Other Color Unaged Tensile Strength: 2000 Psi Min. (1.41 Kg/M M2) Unaged Elongation: 100% Min. Aged Tensile Strength: Unaged Min. 85% (100°C x 240Hrs) Aged Elongation: Unaged Min. 50% (100°C x 240Hrs)
Item 24Awg × 4P
Rating Temp Voltage 75°C 300V
Conductor Resistance 9.38 OHM/100M/20°C Max.
Mutual Capacitance 56 pF/M Max.
Dielectric Strength AC 1.5 KV/2 Sec.
Spark Test 2.5 VK
Insulation Shrinkback 150m/m, 121°C ± 1°C × 1HR≦9.5m/m
Cold Bend Test -20°C × 4HRS No.Crack
Flame Retardant Test CM
Ac Leakage Current Through Overall Jacket AC 1500V≦10 mA
Dc Resistance Unbalance 5% Max.
Pair-To-Ground Capacitance Unbalance 330 pF/100m Max.
Characteristic Impedance 1 ~ 250 MHz 100 ± 15 Ohms
Structural Return Loss 250 MHz 13.2dB Min.
Propagation Delay 250 MHz 536.3nS/100m Max.
Delay Skew 1 ~ 250 MHz 45nS/100m Max.

What is the price of the Micronet SP1101S Cat6 UTP Cable 305M (Original) in Bangladesh?

The latest price of the Micronet SP1101S Cat6 UTP Cable 305M Original in Bangladesh is 21,600৳. You can buy the Micronet SP1101S Cat6 UTP Cable 305M (Original) at the best price from our website or visit our showroom. Stay connected with our what's Page or Facebook Page.
