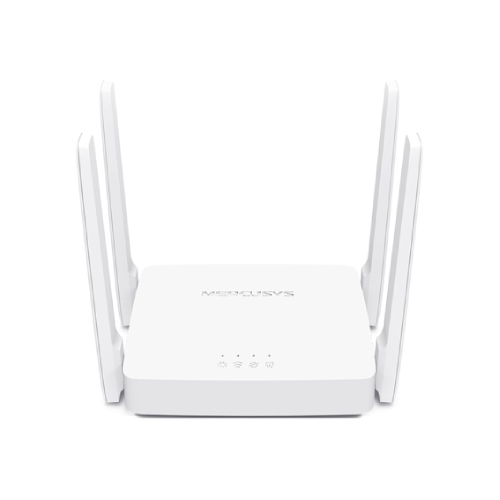

Mercusys AC10 AC1200 Dual Band Wi-Fi Router

Overview of Mercusys AC10 AC1200 Dual-Band Wi-Fi Router

The Mercusys AC10 is an AC1200 dual-band Wi-Fi 5 router designed for homes and small offices that require faster and more flexible wireless connectivity. It provides up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, giving it an AC1200-class wireless rating.

The AC10 uses four 5dBi fixed external omni-directional antennas together with Beamforming technology to improve wireless coverage and connection stability. Mercusys positions the router for everyday internet access as well as bandwidth-intensive activities such as HD streaming and online gaming. [Mercusys Official]

The current AC10 V1.20 specification includes 1 × 10/100Mbps WAN and 2 × 10/100Mbps LAN ports, Router/AP/Range Extender operation, parental controls, QoS, guest networks, IPTV and IPv6 support. [Mercusys Official]

Why Choose the Mercusys AC10?

• AC1200 dual-band Wi-Fi 5.
• 300Mbps 2.4GHz wireless speed.
• 867Mbps 5GHz wireless speed.
• Four 5dBi external antennas.
• Beamforming technology.
• Router, Access Point and Range Extender modes.
• Guest Wi-Fi on both 2.4GHz and 5GHz.
• Parental controls.
• QoS and device priority control.
• IPTV and IPv6 support.
• WPA/WPA2/WPA3 security depending on hardware revision.
• MERCUSYS App and web-based management.

Technical Specifications

*Security features can vary by hardware revision. The current V1.20 documentation lists WPA/WPA2/WPA3, while older AC10 revisions have different security specifications.

AC1200 Dual-Band Wi-Fi

The AC10 provides two wireless bands simultaneously. The 2.4GHz band supports up to 300Mbps, while the 5GHz band supports up to 867Mbps.

The 2.4GHz band is useful for broader compatibility and everyday browsing, while 5GHz provides higher wireless link speeds for compatible smartphones, laptops, streaming devices and gaming equipment. [Mercusys Official]

867Mbps 5GHz Wireless

The 5GHz radio supports up to 867Mbps using 802.11ac technology and an 80MHz maximum channel width. It is particularly useful for bandwidth-intensive applications such as HD streaming, large downloads and online gaming.

300Mbps 2.4GHz Wireless

The 2.4GHz radio provides up to 300Mbps and supports 802.11b/g/n devices. This band is suitable for general web browsing, email, social media, smart-home devices and clients located farther from the router.

Four 5dBi External Antennas

The AC10 features four 5dBi fixed external omni-directional antennas. Mercusys combines the antenna design with advanced antenna technology and Beamforming to improve wireless coverage throughout the home or office.

Beamforming Technology

Beamforming helps the router detect connected devices and concentrate wireless signal strength toward compatible clients. This can improve wireless stability and effective coverage compared with distributing the signal without directional optimization.

Router, Access Point & Range Extender Modes

The AC10 supports three operating modes, providing flexibility for different network installations:

• Router Mode: Creates a complete local network from an internet connection.
• Access Point Mode: Adds wireless connectivity to an existing wired network.
• Range Extender Mode: Extends an existing Wi-Fi network into weak-signal areas.

The current V1.20 specification confirms Router, AP and Range Extender operation. [Mercusys Official]

Guest Network

The AC10 supports separate 2.4GHz and 5GHz guest networks. This allows visitors to access the internet without having to share the main wireless network credentials.

Parental Controls

Parental-control functions include profile settings, time controls, internet pause and website filtering. These features allow parents or administrators to manage when selected devices can access the internet.

QoS & Priority Control

The router includes Quality of Service (QoS) functionality with priority controls. This can be used to prioritize important devices or activities when multiple users are sharing the same internet connection.

IPTV Support

The AC10 supports IPTV-related functions including IGMP Proxy, IGMP Snooping, Bridge/Custom configuration and Tag VLAN. This makes it suitable for compatible ISP broadband services that require IPTV support.

IPv4 & IPv6 Support

The router supports both IPv4 and IPv6, allowing it to operate on modern dual-stack networks and ISP connections that provide IPv6 connectivity. [Mercusys Official]

Fast Ethernet Connectivity

The AC10 provides 1 × 10/100Mbps WAN port and 2 × 10/100Mbps LAN ports.

The Fast Ethernet ports are adequate for basic wired networking and internet connections up to 100Mbps, but users with broadband packages above 100Mbps should be aware that the wired interfaces can become a throughput limitation.

Wireless Security

The AC10 supports modern wireless-security options. The current V1.20 specification lists WPA/WPA2/WPA3, while older hardware revisions may support a narrower set of security modes.

For the exact security capabilities of a supplied unit, the hardware version should be checked before deployment.

Firewall & Network Protection

The AC10 provides an SPI firewall along with access-control and IP/MAC binding functions. NAT features include port forwarding, port triggering, DMZ and UPnP.

MERCUSYS App Management

The AC10 can be managed through the MERCUSYS App as well as its web interface on compatible hardware and firmware. This allows users to configure wireless settings, manage connected devices and control supported network features from a mobile device.

Compact Design

The AC10 measures approximately 114 × 94 × 26mm, making it compact enough for desktop or wall-mounted installation. Its small footprint makes it suitable for apartments, bedrooms, small offices and other space-constrained environments.

Applications of Mercusys AC10

• Home Wi-Fi Networks
• Small Office Networks
• Apartment Broadband
• Dual-Band Home Networking
• HD Video Streaming
• Online Gaming
• Guest Wi-Fi
• Wi-Fi Range Extension
• Access Point Deployment
• IPTV Broadband Networks

Ideal for Home & Small Office Users

The AC10 is designed for users who want an affordable AC1200 dual-band router without requiring Gigabit Ethernet or advanced enterprise networking features.

Its combination of 867Mbps 5GHz Wi-Fi, 300Mbps 2.4GHz Wi-Fi, four 5dBi antennas, Beamforming and multiple operating modes makes it suitable for everyday home and small-office networking.

Benefits of Using the Mercusys AC10

• AC1200 dual-band Wi-Fi 5.
• 300Mbps 2.4GHz wireless speed.
• 867Mbps 5GHz wireless speed.
• Four 5dBi external antennas.
• Beamforming technology.
• Router, AP and Range Extender modes.
• Separate 2.4GHz and 5GHz guest networks.
• Parental controls.
• QoS and priority control.
• IPTV support.
• IPv4 and IPv6 support.
• Compact desktop/wall-mount design.

Mercusys AC10 Price in Bangladesh

At the time checked, a Bangladesh retail listing from Star Tech shows the Mercusys AC10 at ৳1,690, reduced from a regular price of ৳1,859. Another Bangladesh retailer lists it around ৳1,750. Prices and stock may change. :contentReference[oaicite:1]{index=1}

Buy Mercusys AC10 AC1200 Dual-Band Wi-Fi Router in Bangladesh

If you're looking for the Mercusys AC10 AC1200 Dual-Band Wi-Fi Router in Bangladesh, it is a practical choice for users who want faster dual-band Wi-Fi at an affordable price.

With 300Mbps 2.4GHz + 867Mbps 5GHz, four 5dBi antennas, Beamforming, parental controls, QoS, IPTV, IPv6 and multiple operating modes, the AC10 provides a strong feature set for home and small-office networking. [Mercusys Official]

Important Port Limitation

Despite its AC1200 wireless rating, the AC10 uses 10/100Mbps Fast Ethernet interfaces. Therefore, wired devices cannot exceed 100Mbps Ethernet link speed, and internet packages above 100Mbps may not be fully utilized through the WAN connection.

Hardware Version Note

The Mercusys AC10 exists in multiple hardware revisions, including V1 and V1.20. The current V1.20 documentation adds or specifies features such as WPA3, Range Extender mode, detailed parental controls and expanded QoS functions. Therefore, the exact hardware version should be checked before publishing revision-specific specifications or purchasing for a particular feature requirement. [Mercusys Official]

Why Buy from Independent Tech BD?

• Genuine Networking Products
• Competitive Price in Bangladesh
• Home & Small Business Networking Solutions
• Corporate & Project Supply
• Technical Support for Network Deployment
• Nationwide Delivery
• Reliable After-Sales Service

Frequently Asked Questions (FAQ)

What is the speed of the Mercusys AC10?

The AC10 supports up to 300Mbps on 2.4GHz and 867Mbps on 5GHz, giving it an AC1200-class wireless rating. [Mercusys Official]

Is the Mercusys AC10 dual-band?

Yes. It supports both 2.4GHz and 5GHz wireless networks.

How many antennas does the AC10 have?

The AC10 has four fixed 5dBi external omni-directional antennas. [Mercusys Official]

Does the Mercusys AC10 have Gigabit Ethernet?

No. The AC10 uses 10/100Mbps Fast Ethernet for its WAN and LAN interfaces. [Mercusys Official]

Can the AC10 work as a Range Extender?

Yes. The current V1.20 specification supports Range Extender Mode, in addition to Router and Access Point modes. [Mercusys Official]

Does the AC10 support Access Point mode?

Yes. Access Point Mode is supported.

Does the AC10 support WPA3?

The current V1.20 specification lists WPA3 support. Earlier hardware revisions may have different security capabilities, so the hardware version should be verified.

Does the AC10 support IPTV?

Yes. It supports IPTV features including IGMP Proxy, IGMP Snooping, Bridge/Custom and Tag VLAN. [Mercusys Official]

Does the AC10 support IPv6?

Yes. IPv4 and IPv6 are supported. [Mercusys Official]

What is the Mercusys AC10 price in Bangladesh?

Current Bangladesh listings checked show approximately ৳1,690–৳1,750, depending on the seller and current offer. :contentReference[oaicite:2]{index=2}
