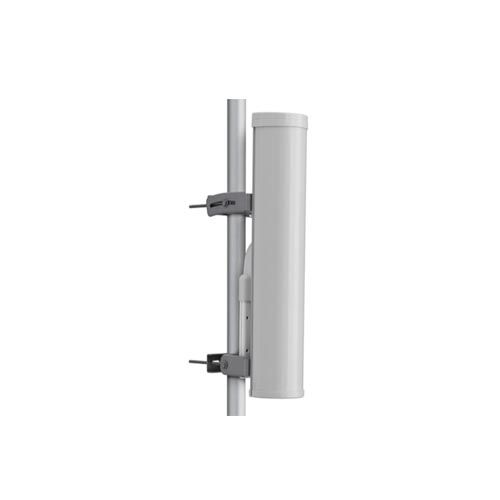

Cambium ePMP 18dbi 120 Degree Sector Antenna (CB-SEC-5G-90/120)

Cambium ePMP 18dbi 120 Degree Sector Antenna (CB-SEC-5G-90/120)
-4 %
Cambium ePMP 18dbi 120 Degree Sector Antenna (CB-SEC-5G-90/120)
  • Price: 28,500৳
  • special price: 27,500৳
  • Status: In Stock
  • Brand: Cambium
  • Model: Model
Based on 0 reviews. - Write a review
27,500৳
28,500৳
Ex Tax: 27,500৳
WhatsApp Inquiry
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

  • Cambium ePMP Sector Antenna Price in Bangladesh.

Cambium ePMP 18dbi 120 Degree Sector Antenna Price in Bangladesh.

Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability. Based on this vast experience, Cambium Networks has designed an antenna solution that enables network operators to increase the spectral efficiency and scale of their ePMP point-to-multipoint (PMP) distribution access networks. Wireless Service Providers deploying networks in 5 GHz spectrum will find this sector antenna for 90° and 120° applications especially well-suited for high-density networks requiring frequency re-use and wide-band spectrum coverage. With a compact design featuring integrated ePMP Access Point and ePMP 2000 Smart Antenna mounting, a very high Front-to-Back Ratio of 35 dB, and a wide frequency range, the ePMP Sector Antenna is the perfect partner for ePMP 2000. The ePMP Sector Antenna also features excellent null fill, to allow subscribers at all ranges from... Key Deployment Advantages:
  • Frequency Reuse: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has 35 dB front to back ratio including a wide aperture in the rear-facing direction.
  • Channel Flexibility: Consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.
  • Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.
  • Designed for the Installer: Small compact design, integrated ePMP radio mount and GPS antenna integration.
  • Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.
Key Specifications:
  • 18 dBi gain
  • 4.9 to 5.97 GHz spectrum
  • 35 dB front to back ratio
  • IP 65 ruggedization
ePMP Sector Antenna Specifications
Frequency Range 4.9 GHz to 5.97 GHz
Gain 18 dBi
3 dB Beamwidth - Azimuth 90 degrees
6 dB Beamwidth - Azimuth 120 degrees
3 dB Beamwidth - Elevation 6 degrees
Electrical Downtilt -2 degrees
Polarization Horizontal and Vertical
Port-to-Port Isolation > -30 dB
Front-to-Back Ratio 35 dB
Mazimum Input Power 5 W
Input Impedance 50 ohms
Mounting Connectors 2 x RP SMA
Mounting Hardware Included for mounting to mast diameters 2" to 4" (5 cm to 10 cm) -10 to +5 degree tilt Hardware included to connect ePMP access point to back of antenna body
Physical Dimensions Antenna Body: 23.4 (H) x 6.2 (W) x 4.3 (D) inches (594 x 157 x 110 mm) w/ ePMP1000 Access Point: 23.4 (H) x 6.2 (W) x 5.9 (D) inches (594 x 157 x 150 mm)
Weight Antenna Body: 8.8 lbs. (4.0kg) w/ ePMP1000 Access Point and Mounting Brackets: 14.6 lbs. (6.6 kg)
Environmental IP65
Radome Material UV Protected ABS
Operating Temperature -40° to 60° C (-40° to 140° F)
