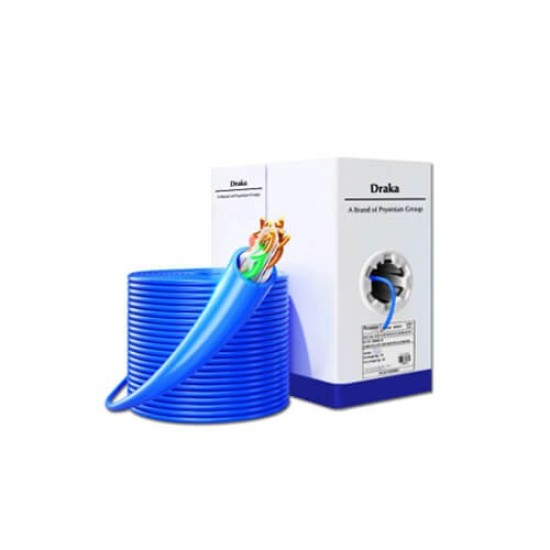

Draka Cat6 23AWG PVC UTP Cable 305M | 60088BL

Feature

• – Gigabit internet speed is faster and more stable
• – Support monitoring POE power supply
• – Thickened full copper wire core, single-strand 0.55 ± 0.02mm
• – Low resistance, high conductivity
• – 8-core twisted pair structure transmission is more stable
• – Tested by fluke, full rate up to 1000Mbps
• – PVC environmental protection outer cover, which is flexible, anti-aging, wear, pull resistance, and can be used for a long time to protect the internal core from damage

Application

• – Generic cabling systems
• – Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
• – IEEE 802.3 10Base-T; 100Base-T; 1000Base-T
• – IEEE 802.5 16 MB; ISDN; TPDDI; ATM
• – IEEE 802.3af (PoE); IEEE 802.3at (PoE+)

Standards

• – ANSI EIA/TIA 568-D.2: 2018;
• – ISO/IEC 11801-1: 2017 / ISO/IEC 11801-2: 2017;
• – IEC 61156-5: 2012;
• – EN 50173-1: 2011 / EN 50173-2: 2007 including amendment A1: 2010
• – EN 50288-6-1: 2013

Construction

• – Conductor: Solid copper wire Nom. ≥ Ø 0.546 mm (23AWG)
• – Insulation: PE, Nom. Ø 0.95/1.01 mm
• – Twisting: 2 cores to the pair
• – Cable Lay Up: 4 x pairs to the core non-metallic cross separator
• – Sheath / Color: PVC, BLUE
• – Outer Diameter: Nom. Ø 6.1 mm
• – Approximate Weight: Nom. 39.0 kg/km
