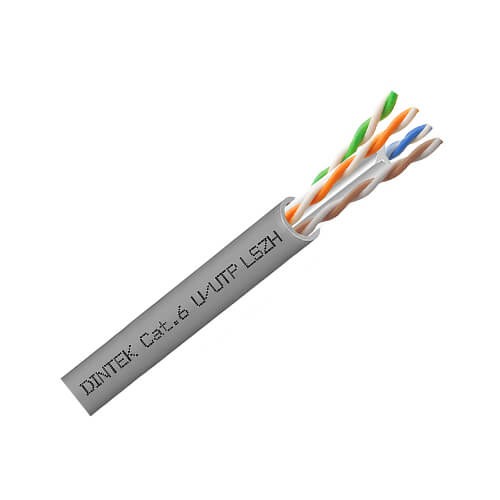

DINTEK Cat6 U/UTP 23AWG LSZH Cable 305M | 1101-04046

DINTEK Cat6 U/UTP 23AWG LSZH Cable 305M | 1101-04046
-5 %
DINTEK Cat6 U/UTP 23AWG LSZH Cable 305M | 1101-04046
  • Price: 21,500৳
  • special price: 20,500৳
  • Status: In Stock
  • Brand: Dintek
  • Model: Cat6 U/UTP 23AWG LSZH
Based on 0 reviews. - Write a review
20,500৳
21,500৳
Ex Tax: 20,500৳
WhatsApp Inquiry
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

    • Part No: 1101-04046
    • Operating Temperature: -20℃ to +60℃
    • Performance: ANSI/TIA 568.2-D Cat.6 / ISO/IEC 11801
    • 10Gbit (500Mhz) Transmission up to a length of 70Mtrs

DINTEK Cat6 U/UTP 23AWG LSZH Cable 305M | 1101-04046:

DINTEK PowerMAX500TM unshielded Cat.6 / Class E U/UTP LSZH cable is guaranteed to exceed Cat.6 specifications as set down in ANSI/TIA and ISO/IEC standards. Our PowerMAX500TM solution comprises unshielded Cat. 6-component compliant patch panels, keystones, and patch cords.
When combined with DINTEK’s unshielded Cat.6 / Class E U/UTP LSZH cable, an end-to-end channel exists that maximizes data throughput and provides headroom for future technologies operating to, and beyond Gigabit Ethernet.

Applications

  • Horizontal and backbone cable
  • 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
  • 100 Mbps TP-PMD / 100VG-AnyLAN
  • Broadband Video / Voice / T1 / ISDN
  • 10Gbit (500Mhz) Transmission up to a length of 70Mtrs

Standards Compliance

  • Performance – ANSI/TIA 568.2-D Cat.6 / ISO/IEC 11801
  • Structural – EN 13501-6:2014 | IEC 61156-5 | EN 50288-6-1
  • PoE capability – IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)
  • Environmental – Conforms to RoHS and REACH Directives
  • Flame testing – EN 60332-1-2 | EN61034-2 | EN 60754-1/2

Independent Certification

  • ETL Certification according to ANSI / TIA-568.2-D Cat.6
  • CPR Reaction To Fire Classification – Dca,s2,d2,a1 as per EN 50399

Features

  • Capable of handling the latest versions of Power over Ethernet
  • Conductor sizes for PowerMAX500TM Cat.6 set at 23AWG
  • LSZH jacketed 4-pair telecommunications cable
  • Successful transmission at 500Mhz up to a length of 70Mtrs
  • EZI-Pull 305Mtr Box for trouble-free installation
Conductor
Material Pure Annealed Copper
Wire Size 23AWG
Strand Type Solid Core
No. Of Pairs 4P
Insulation
Material Polyethylene
Thickness 0.21mm ± 0.01mm
Diameter 0.98mm ± 0.05mm
Colors Blue/White | Orange/White | Green/White | Brown/White
Pair Foil Wrap None
Jacket
Material LSZH
Thickness 0.5 mm ± 0.05mm
Diameter 5.70mm ± 0.3mm
Color Gray
CPR Reaction To Fire Classification Dca,s2,d2,a1
Foil Shield None
Braided Shield None
Physical Ranges
Jacket
Cold Bend Test -20 ± 2°C x 4hrs no crack
Min. Bending Radius Min. 4 x Cable Diameter
Max. Pulling Tension 110N
Installation Temperature 0℃ to +50℃
Operating Temperature -20℃ to +60℃
Electrical
Conductor Resistance Max. 9.38 Ω/100m at 20°C
DC Resistance Unbalance Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation DC 1.0 KV for 1 min
Insulation Resistance Test (500V) Min. 5000 MΩ/Km at 20°C
Mutual Capacitance Max. 5600 pF/100m at 1 kHz
Impedance 1 ~ 250Mhz 100Ω ± 5%
Nominal Velocity Of Propagation 67%
