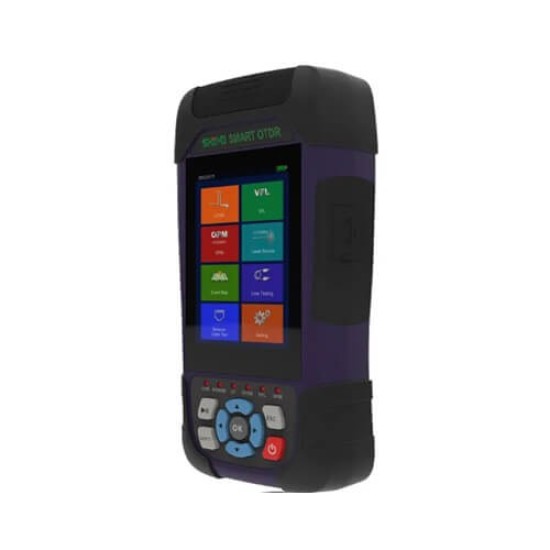

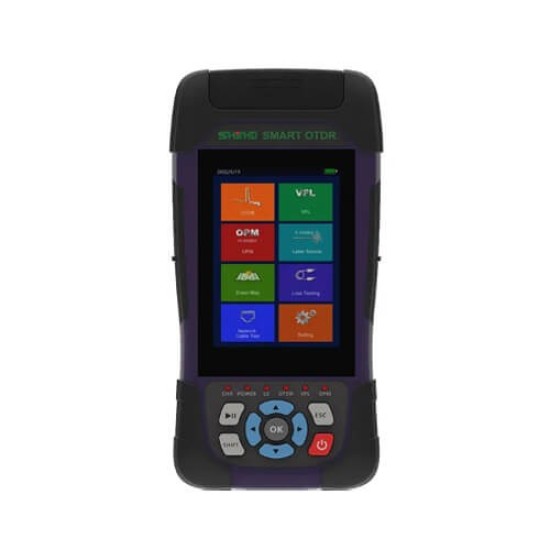

SMRT100 Smart Hand-held OTDR
SMRT100 – SHINHO Smart Series OTDR with 3.5-inch color capacitive touch screen is simple to operate.
It integrates eight most popular functions such as OTDR, Event map, Laser source, Optical power meter, VFL, RJ45, line finding and lighting .
- OTDR/Event map/Laser source/power meter/VFL/RJ45/Line finding/Lighting 8 in 1
- 3.5-inch color LCD screen with capacitive touch screen with multi-touch support
- 90km measuring range, 2.5m Event Dead zone
- Up to 100,000 data saves (1000 internal, 100,000 with SD card)
- Type C and Wireless charging
- Pocket design, small and light, easy to carry
- Large-capacity battery, more than 20 hours working life, intelligent power-saving mode
- Hidden optical port design, shockproof and drop resistant
- File standard format SOR with batch processing
- One-button intelligent detection, automatic data analysis
- SC and LC (APC or UPC) connector included (ST/FC Optional)
| Fiber type |
G.652D |
| Event dead zone |
2.5 m |
| Attenuation zone |
8 m |
| Measuring range |
100m/500m/1 km/2 km/5 km/10km/20km/40km/60km/90km |
| Pulse width |
5ns/10ns/20ns/50ns/100ns/200ns/500ns/1 us/2 us/5 us/10u |
| Accuracy |
±( 1m+Sampling interval+0.005% X measuring range) |
| Linearity |
±0 .2d B/dB |
| Sample points |
Maximum sampling points：20000 |
| Sampling resolution |
25cm~8 m |
| Loss resolution |
0 .001d B |
| Range resolution |
0 .001m |
| Refractive index |
1 .0000~2 .0000 |
| Reflection accuracy |
±3dB |
| File format |
Standard for file format |
| Safety level |
Class 3B |
| File format |
Standard for file format : SOR |
|
Temperature / humidity
|
Ambient temperature：- 10℃~50℃ |
| Storage ambient temperature：-40℃~+70℃ |
| Humidity：0~90%(non condensing) |
| Size / weight |
Size ：17cmX12cmX3cm weight：340g |
| Battery |
4000mA h/3 .7V |
| Adapter |
USB(Type C) |
| Optical Power Meter |
| Wavelength |
850/ 1300/ 1310/ 1490/ 1550/ 1625/ 1650nm |
| Range |
A:-70~+10dBm B:-50~+26dBm |
| Frequency |
270Hz/330Hz/ 1 k Hz/2 k Hz |
| Uncertainty |
±5% |
| Connector |
APC or UPC Universal head: LC/SC (ST/FC Optional) |
| Laser source |
| Wavelength |
1310/1550 |
| Laser type |
FP – LD |
| Power |
-5d B m±2dB |
| Uncertainty |
±5% |
| Connector |
FC/SC/ST |
| Other module |
| VFL |
≥10mW |
| RJ45 |
Line sequence / line finding |
