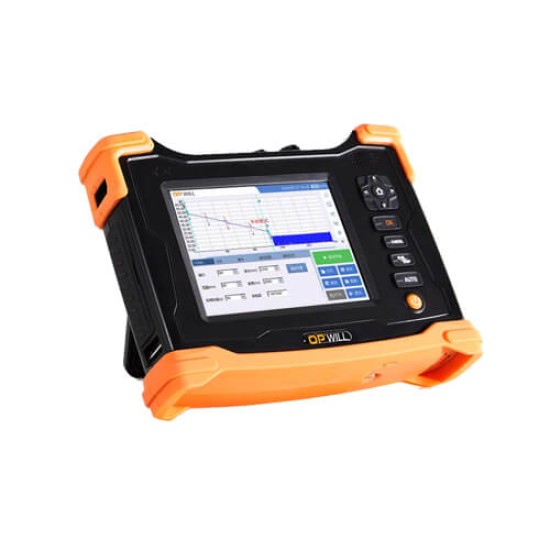

OPWILL FTS510-S OTDR Fiber Tester

OPWILL FTS510-S OTDR Fiber Tester
-11 %
OPWILL FTS510-S OTDR Fiber Tester
  • Special Price: 104,990৳
  • Regular Price: 117,990৳
  • Status: In Stock
  • Brand: OPWILL
  • Model: FTS510-S
Based on 0 reviews. - Write a review
104,990৳
117,990৳
Ex Tax: 104,990৳
WhatsApp Inquiry
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

    • Wavelength: 1310/1550 ±20 nm
    • Dynamic range up to 45dB; SR-4731
    • Sampling Resolution: 0.04 to 2m
    • Measurement Range: +10 to -60 dBm
    • Operation mode: CW, 270Hz, 330Hz, 1KHz, 2kHz

OPWILL FTS510-S OTDR Fiber Tester

The FTS510 Series OTDR Tester is a new product released by OPWILL. It has rapid start technology and supports automatic and real-time test modes, which can guarantee that engineers can examine and detect optical fibers or cables in the core, metro, and access network with high flexibility, efficiency, and convenience. Meanwhile, its operating system interface has high similarity with Android GUI and significantly simplifies the test procedure.  FTS510 Series Handheld OTDR Test Set has 8 models to meet various test environments. Specific information has been demonstrated below:
 Product Wavelength Dynamic Range
Regular OTDR
FTS510-E-ac 1310/1550nm 45/43dB
FTS510-M-ac 1310/1550nm 43/41dB
FTS510-H-ac 1310/1550nm 40/39dB
FTS510-N-ac 1310/1550nm 35/34dB
FTS510-L-ac 1310/1550nm 32/30dB
PON OTDR
FTS510-H-and 1310/1550/1625nm 40/39/38dB
FTS510-H-abcd 1310/1490/1550/1625nm 40/37/39/38dB
FTS510-H-ace 1310/1550/1650nm 40/39/38dB
FTS510-H-table 1310/1490/1550/1650nm 40/37/39/38dB
Features Novice mode with automatic trace diagnostics, one-button setup, and events detection; Markers for distance, attenuation, reflectance, and splice loss; Dynamic range up to 45dB; SR-4731.sor file formats; Support VFL; Support iOTA (Optional); Support power meter (Optional); Support light source (Optional); The minimum sampling resolution is 4cm and the sampling points up to 256,000; Remote measurement via RJ45 connection using OPWILL OTDR Desktop software. Specifications
TECHNICAL SPECIFICATIONS
Wavelength 1310±20 nm 1550±20 nm 1490±20 nm 1625±10 nm 1650±7 nm
Dynamic Range (SNR=1) at 25°C 30 to 45 dB Typical at 20us
Fiber under Test 9μm/125μm single-mode optical fiber (ITU-T G.652)
Pulse Width 3, 5, 10, 30, 50, 100, 275, 500, 1000, 5000, 10000, 20000 ns
Distance Range 0.5, 2.5, 5, 15, 40, 80, 120, 160, 200, 240 km
Event Dead Zone £0.8 m
Attenuation Dead Zone £4m
Sampling Resolution 0.04 to 2m
Sampling Points 256K
IOR 1.30000 to 1.80000
Linearity ±0.05 dB/dB
Distance Uncertainty ±(0.75+0.0050%×distance + sampling resolution) m
Measurement Time 1s to 300s, Real-time
OTDR Port FC/PC (Standard) SC/PC (Optional) LC/PC (Optional) FC/APC (Standard iOTA) SC/APC (Optional iOTA) LC/APC (Optional iOTA)
VFL Wavelength 650±20nm
Output Power +10dBm
Operation mode CW, 1Hz
Power Meter (Optional) Wavelength 780 to 1800 nm
Calibrated wavelengths 850, 1300, 1310, 1490, 1550, 1625 nm
Measurement range +10 to -60 dBm
Resolution 0.01 dB
Light Source (Use OTDR port, Optional) Wavelength 1310/1550 ±20 nm
Output power >-4 dBm
Operation mode CW, 270Hz, 330Hz, 1KHz, 2kHz
Intelligent optical link topology analysis (Optional) Intelligently combines different pulse widths to get the loss and return loss of fiber and splitter. Multiple pulse acquisitions and algorithms deliver detailed information on every element on the fiber link.
Intelligent network test tools (Optional) The iNET includes PING, Trace Route, FTP upload and download, and HTTP features for Ethernet Link Fault check testing.
Laser Safety IEC 60825-1: 2007: CLASS 1; 21 CFR 1040.10

What is the price of the OPWILL FTS510-S OTDR Fiber Tester in Bangladesh?

The latest price of best price for the OPWILL FTS510-S OTDR Fiber Tester in Bangladesh is 104,990৳. You can buy the OPWILL FTS510-S OTDR Fiber Tester at the best price from our website or visit our showroom. Stay connected with our WhatsApp Page or Facebook Page.
