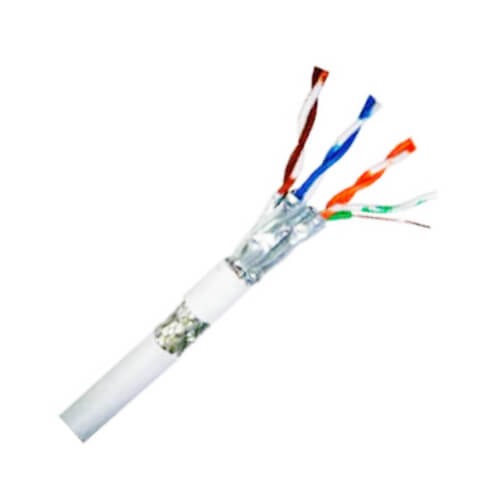

SafeNet Cat6 S/FTP 23AWG LSZH UTP Cable | 32-5351GR

SafeNet Cat6 S/FTP 23AWG LSZH UTP Cable | 32-5351GR:

SAFENET 4-Pair SFTP Cat6A LSZH cable has been designed to support high-speed data transmission systems such as Gigabit Ethernet for mission-critical LAN applications or future-proofing Structured Cabling Systems. The cable is characterized to 250MHz and Powersum NEXT tested. We confirm that the cable is used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.

Complied Standards

• ISO/IEC 11801:2011(Ed.2.2)
• IEC 61156-5:2009(Ed.2.0)
• EN 50173-1:2011
• EN 50173-2:2007 including amendment A1:2010
• ANSI/TIA-568-C.2:2009
• TIA/EIA-568B.2-2001

Products Characteristics

• Conductor Diameter: 0.57mm ± 0.008mm
• Foam PE Insulation: 1.34mm ± 0.03 mm
• Al foil: Overlap rate≥125%
• Braiding: 16*6*0.12mm ALMG
• Drain wire: 1*0.4 tinned copper
• Outer Jacket Thickness: 0.5mm±0.5mm
• External Diameter: 7.9mm±0.5mm
• Linear Resistance: Max.<85 Ω/km
• Mutual Capacity (nom.): 5.6nF/100M
• Unbalance Capacity Max (p/p at 1 KHz): 1600 pF/km
• Characteristic Impedance (1 to 100 MHz): 100 ±15Q
• Velocity OF Propagation (f>1 MHz): 69% of c

Key Feature

• Compliant with TIA-568.2-D Category 6A cable specifications
• 23 AWG SOLID-Bare Copper Conductor
• Characterized and tested up to 250MHz
• 4 Pair with LSZH Outer Jacket
• ROHS Compliant & UL Approval, DELTA, GHMT
• Print legend contains footage marking from 305M to 001M

Application

• IEEE 802.3: 10G BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T
• ANSI/TIA/EIA-854: 10G BASE-TX
• 155 Mb/s, 1.2 Gb/s ATM
• ANSI X3.263: 100 Mb/s
• IEEE 802.3af DTE Power (POE)
• 4/16 Mb/s Token Ring
• Digital Video
• Broadband and Baseband Analog Video

Ordering Information: Part No Name of items Color Weight
