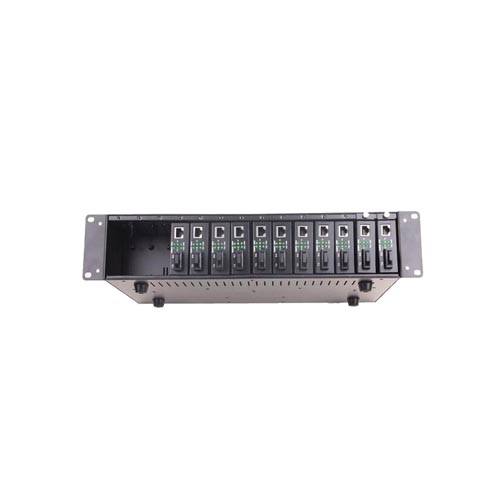

Rack Mount Chassis 14 Slot MC-1400-5V for Media Converter

Overview of MC-1400-5V 14-Slot Media Converter Rack Chassis

The MC-1400-5V is a 14-slot rack-mount chassis designed to house and power multiple compatible media converters in a centralized network installation. It provides an organized solution for high-density fiber-optic and copper network deployments where several media converters need to be installed in a single rack enclosure.

The chassis supports up to 14 media converters and features dual 5V/12A power supplies with redundancy. Two integrated cooling fans help maintain airflow inside the chassis, while the 3U 19-inch rack-mount design allows installation in standard equipment racks.

By centralizing multiple media converters and their power requirements, the MC-1400-5V can help reduce individual power-adapter clutter and provide a cleaner, more organized network infrastructure.

Key Features

• 14 Media Converter Slots: Accommodates up to 14 compatible media converters in one chassis.
• Dual Redundant Power Supply: Uses two 5V/12A power supplies for increased power availability.
• 2 Cooling Fans: Built-in fans help maintain airflow and cooling for installed media converters.
• 3U 19-Inch Rack Mount: Designed for installation in standard 19-inch network and server racks.
• Centralized Power: Supplies power to multiple compatible media converters from the rack chassis.
• High-Density Installation: Consolidates multiple media converters into a single rack-mounted enclosure.
• 100-240VAC Input: Dual power supplies accept 100-240VAC, 50/60Hz input according to the listed specification.
• 5V DC Output: Provides 5V DC power with a 12A rating for compatible media converters.

Technical Specifications

14-Slot Media Converter Capacity

The MC-1400-5V provides 14 slots for compatible media converters, allowing multiple fiber-to-copper or other media-conversion devices to be consolidated into one rack-mounted chassis.

This high-density configuration is useful for network installations where multiple individual media converters would otherwise require separate desktop placement and power adapters.

Dual Redundant Power Supply

The chassis features two 5V/12A power supplies configured for redundancy. The dual-power architecture is designed to improve power availability for installed media converters by providing a secondary power supply.

The AC input specification is 100-240V, 50/60Hz, while the listed DC output is 5V at 12A. The exact redundancy behavior should be confirmed against the supplied hardware before deployment in a mission-critical environment.

Integrated Cooling System

Two built-in cooling fans provide airflow through the chassis to help dissipate heat generated by the installed media converters and power supplies.

Active cooling is particularly useful when the chassis is populated with multiple converters operating continuously. Adequate ventilation should be maintained around the rack and fan openings during installation.

3U 19-Inch Rack Mount Design

The MC-1400-5V uses a 3U, 19-inch rack-mount format, allowing it to be installed in standard server and network racks.

The listed physical dimensions are approximately 485 × 245 × 90mm. Its rack-mounted format helps centralize media converters and simplifies physical organization within a network cabinet.

Centralized Media Converter Deployment

Instead of installing multiple media converters separately with individual external power adapters, the MC-1400-5V provides a centralized chassis for compatible converter modules.

This arrangement can improve rack organization, simplify power distribution, and make larger fiber-network deployments easier to manage.

Applications

• Fiber-optic network infrastructure
• Enterprise networks
• Data centers
• ISP network installations
• Telecommunications networks
• Network operation centers
• Server rooms
• Fiber-to-Ethernet deployments
• Campus networks
• High-density media converter installations

Media Converter Compatibility

The chassis is designed to accommodate compatible media converter modules. Compatibility should be verified before installation because not every media converter will necessarily use the same physical dimensions, power requirements, or chassis interface.

The 5V DC output specification is particularly important when selecting compatible converters. The converter's required voltage, current, physical slot configuration, and chassis interface should match the MC-1400-5V.

Installation and Power Requirements

The chassis should be securely installed in a compatible 19-inch rack using appropriate rack-mount hardware. Once installed, compatible media converters can be inserted into the available slots and connected according to their individual network requirements.

The chassis should be connected to an appropriate AC power source within its 100-240VAC, 50/60Hz input range. Proper ventilation should be maintained so that the integrated cooling fans can operate effectively.

Compatibility Notice

Verify the media converter's power and physical compatibility before installation. The MC-1400-5V provides 5V DC power, so converters designed for different voltage requirements should not be connected unless the required compatibility is confirmed.

The exact behavior of the dual redundant power supplies, supported converter models, and hot-swapping functionality may vary by hardware revision. These details should be confirmed with the supplier when required for a specific deployment.

Why Choose the MC-1400-5V?

The MC-1400-5V provides a practical centralized solution for organizations deploying multiple media converters. Its 14-slot capacity, dual redundant power supplies, two cooling fans, and 3U 19-inch rack format make it suitable for high-density fiber-network installations.

Centralizing media converters can also help reduce cable and power-adapter clutter while making network equipment easier to organize within a professional rack environment.

Buy MC-1400-5V Media Converter Rack in Bangladesh

The MC-1400-5V 14-Slot Rack Mount Chassis is suitable for ISPs, network operators, enterprise IT teams, telecommunications companies, fiber technicians, and data-center installations in Bangladesh.

Before purchasing, verify the supported media converter type, 5V power requirement, rack dimensions, power redundancy requirements, and available rack space.
