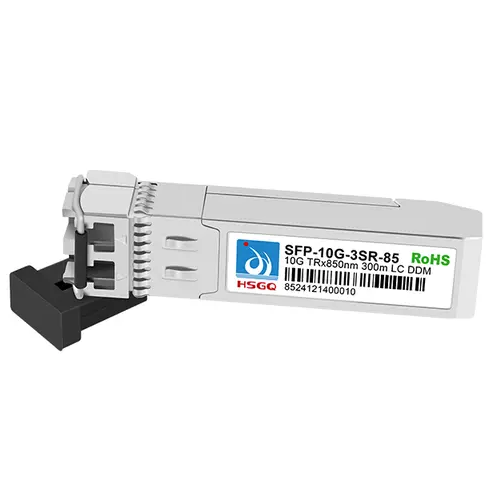

HSGQ 10G SFP+ SR 850nm 300M Multimode LC DDM Optical Transceiver
The HSGQ 10G SFP+ SR 850nm 300M is a high-speed short-range optical transceiver designed for 10 Gigabit Ethernet networking over multimode fiber. Operating at 850nm, this SR-class module supports a specified transmission distance of up to 300 meters with compatible multimode fiber and features an LC duplex connector and DDM monitoring.
10Gbps SFP+ SR Connectivity
The module uses the compact SFP+ form factor and is designed for compatible 10Gbps network equipment. It can be used for high-speed connections between switches, servers, routers and other networking devices equipped with SFP+ ports.
850nm Multimode Fiber
This transceiver operates at a nominal 850nm wavelength and is intended for multimode fiber (MMF). Its short-range design makes it particularly suitable for high-speed connections within data centers, server rooms and enterprise network environments.
300M Transmission Distance
The module provides a specified reach of up to 300 meters under compatible multimode-fiber conditions. Actual reach can depend on the fiber grade, attenuation, connector quality, installation conditions and optical budget.
DDM Monitoring
With Digital Diagnostic Monitoring (DDM), the module can provide supported host equipment with useful optical and operating information such as module temperature, supply voltage and optical transmit/receive parameters. DDM availability and displayed parameters depend on the host device.
LC Duplex Connector
The module uses an LC duplex optical connector for separate transmit and receive paths. It is designed for standard duplex multimode fiber connections between compatible 10G SFP+ interfaces.
Technical Specifications
| Specification | Details |
|---|
| Brand | HSGQ |
| Product Type | 10G SFP+ SR Optical Transceiver |
| Data Rate | 10Gbps |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (MMF) |
| Transmission Distance | Up to 300m |
| Optical Connector | LC Duplex |
| Fiber Configuration | Duplex |
| Digital Diagnostics | DDM |
| Form Factor | SFP+ |
| Application | 10 Gigabit Ethernet / Short-Range Fiber Networking |
Applications
- 10G switch-to-switch connections
- Data center network links
- Server-to-switch connectivity
- Enterprise backbone networks
- Rack-to-rack fiber connections
- High-speed LAN infrastructure
- Short-distance multimode fiber links
Installation and Compatibility
Install the HSGQ SFP+ SR module into a compatible 10G SFP+ port and connect it using duplex multimode LC fiber. For a point-to-point link, use compatible 850nm 10G multimode optical transceivers at both ends.
Before deployment, verify that the host switch, router, server or other networking device supports 10G SFP+ modules and DDM. The fiber type and required transmission distance should also be checked to ensure the link remains within the module's optical specifications.
Why Choose HSGQ 10G SFP+ SR?
The HSGQ 10G SFP+ SR 850nm 300M provides a cost-effective solution for short-distance 10Gbps fiber connectivity. Its multimode-fiber design, LC duplex interface, 300m specified reach and DDM capability make it well suited for data centers, enterprise networks and high-speed server connections.
Frequently Asked Questions
What is the speed of this HSGQ SFP+ module?
The module is designed for 10Gbps optical networking.
What wavelength does it use?
This SR module operates at 850nm.
What type of fiber is required?
It is designed for multimode fiber (MMF).
What is the maximum transmission distance?
The specified transmission distance is up to 300 meters with compatible multimode fiber.
What does DDM mean?
DDM stands for Digital Diagnostic Monitoring. It allows supported network equipment to monitor operational and optical parameters from the transceiver.
What connector does this module use?
It uses an LC duplex optical connector.
