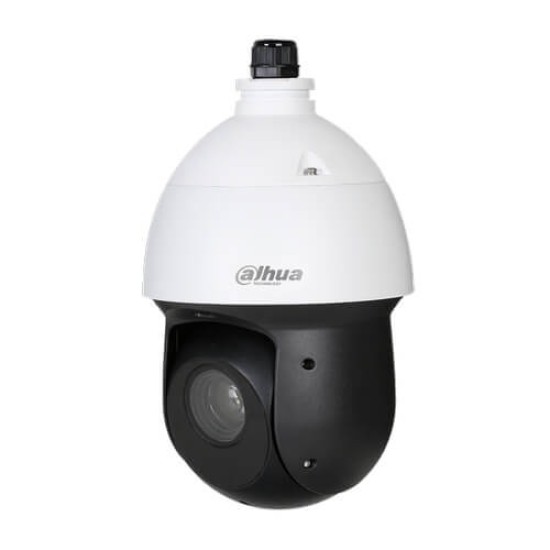

Dahua DH-SD49225XA-HNR 2MP PTZ Camera

Dahua DH-SD49225XA-HNR 2MP PTZ Camera:

Camera:

• Image Sensor:1/2.8″ STARVIS™ CMOS
• Pixel:2MP
• Max. Resolution:1920 (H) × 1080 (V)
• ROM:4GB
• RAM:1GB
• Electronic Shutter Speed:1/1 s–1/30,000 s
• Scanning System:Progressive
• Min. Illumination:Color: 0.005Lux@F1.6
  B/W: 0.0005Lux@F1.6
  OLux@F1.6 (IR light on)
• Illumination Distance:100 m (328.08 ft)
• Illuminator On/Off Control:Zoom Prio/Manual/SmartIR
• Illuminator Number:6
• Model:DH-SD49225XA-HNR

Lens:

• Focal Length:4.8 mm–120 mm
• Max. Aperture:F1.6–F4.4
• Field of View:H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9°
• Optical Zoom:25x
• Focus Control:Auto/Semi-Auto/Manual
• Close Focus Distance:0.1 m–1.5 m (0.33 ft–4.92 ft)
• Iris Control:Auto/Manual
• DORI Distance:
  Detect Observe Recognize Identify
  1613 m 646 m 323 m 161 m
  (5291.99 ft) (2119.42 ft) (1059.71 ft) (528.22 ft)

PTZ:

• Pan/Tilt Range:Pan: 0°–360° (endless)
  Tilt: -15°–90° (auto flip 180°)
• Manual Control Speed:Pan: 0.1°–200°/s
  Tilt: 0.1°–120°/s
• Preset Speed:Pan: 240°/s
  Tilt: 200°/s
• Presets:300
• Tour:8 (up to 32 presets per tour)
• Pattern:5
• Scan:5
• Speed Adjustment:Support
• Power-off Memory:Support
• Idle Motion:Preset/Tour/Pattern/Scanning
• Protocol:DH-SD
  Pelco-P/D (auto recognition)

General Intelligence:

• Event Trigger:Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
• IVS:Object Abandoned/Missing

Artificial Intelligence:

• Perimeter Protection:Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
• SMD PLUS:Support
• Face Detection:Support
• Smart Capture:Support human, motor vehicle, and non-motor vehicle image capture.

Video:

• Compression:H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
• Streaming Capability:3 streams
• Resolution:1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280× 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352× 240)
• Frame Rate:Mainstream: 1080P/1.3 M/720P (1–50/60fps)
  Sub stream 1: D1/CIF (1–25/30fps)
  Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30fps)
• Bit Rate Control:Variable/Constant
• Bit Rate:H.265/H.264: 3 kbps–20480 kbps
• Day/Night:Auto(ICR)/Color/B/W
• BLC:Support
• WDR:120 dB
• HLC:Support
• White Balance: Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Streetlamp
• Gain Control:Auto/Manual
• Noise Reduction:Ultra DNR (2D/3D)
• Motion Detection:Support
• Region of Interest (ROI):Support
• Image Stabilization:Electronic
• Defog:Electronic
• Digital Zoom:16x
• Flip:180°
• Privacy Masking:Up to 24 areas, and up to 8 areas in the same view

Audio:

• Compression:G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2;G.729

Network:

• Ethernet:RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
• Interoperability:ONVIF Profile S&G&T; CGI
• Streaming Method:Unicast/Multicast
• User/Host:19
• Storage:NAS; Local PC; Micro SD card (256G)
• Browser:IE7 and newer versions
• Management Software:Smart PSS; DSS; DMSS
• Mobile Phone:IOS/Android

Certification:

• Certifications:CE: EN55032/EN55024/EN50130-4
  FCC: Part15 Subpart B, ANSI C63.4-2014
  UL: UL62368-1+CAN/CSA C22.2,No. 62368-1

Port:

• Audio Input:1
• Audio Output:1
• Alarm I/O:2/1

Power:

• Power Supply:DC 12V/3A
  POE+ (802.3at)
• Power Consumption:13W
  22W (IR on)

Environment:

• Operating Temperature:-40°C to +70°C (-40°F to +158°F)
• Operating Humidity:≤95%
• Protection:IP66; TVS 6000V lightning proof; Surge protection

Structure:

• Dimensions:Φ160 mm × 295 mm (6.30″ × 11.61″)
• Net Weight:3 kg (6.61 lb)
• Gross Weight:4.8kg (10.58lb)
