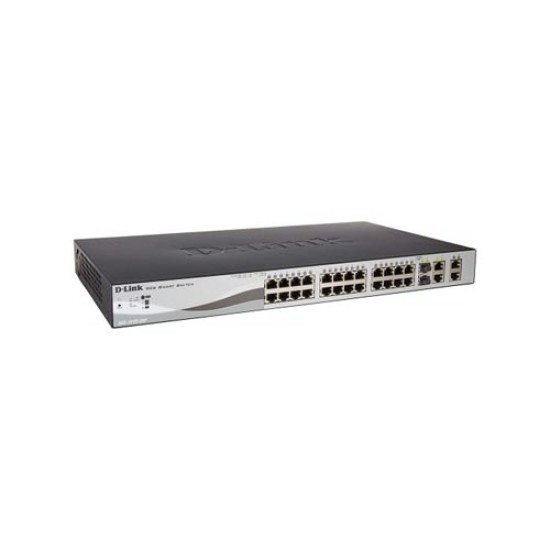

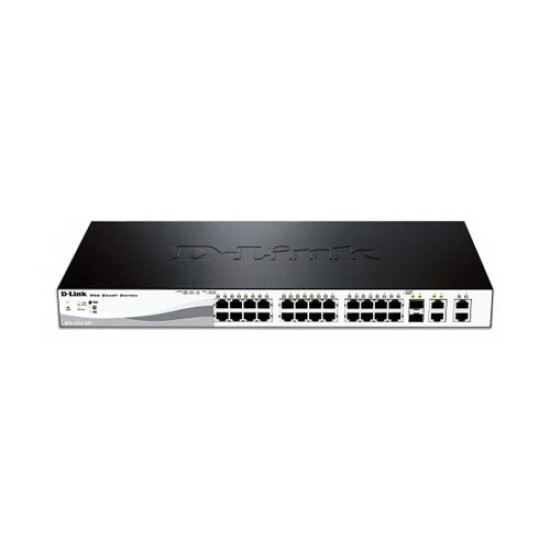

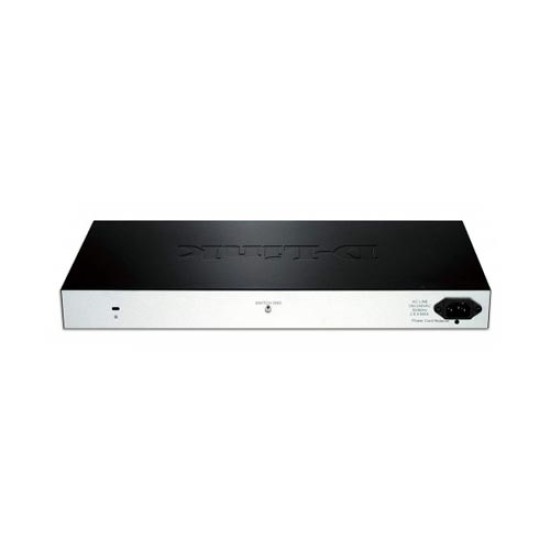

D-Link DES-1210-28P Web Smart 24-Port Fast PoE Ethernet Switch
The DES-1210-28P Web Smart PoE switch includes advanced management functions, including SNMP, Web Management, Smart Console Utility, and a compact command line provides a complete and affordable solution for small and medium businesses. In addition, the DES-1210-28PP offers Power over Ethernet to power devices up to 30W per device.
The D-Link Web Smart switch DES-1210-28P is equipped with 24 10/100Mbps ports, two 10/100/1000BASE-T ports, and two combo 10/100/1000BASE-T/SFP ports. It integrates advanced management and security functions to provide performance and scalability. While easy to use, the DES-1210-28P provides a complete and affordable solution for small and medium businesses. Management options for the switch include SNMP, Web Management, SmartConsole Utility, and compact Command Lines. The DES-1210-28P also supports ACL filtering and the D-Link Safeguard Engine™. Furthermore, the DES-1210-28P uses Auto Voice VLAN, ensuring higher priority for voice traffic. Both models come with an innovative fanless design in 19” metal cases.
Seamless Integration
The Web Smart switch DES-1210-28P is designed to provide SMB users with complete control over the network. With Ethernet and Gigabit copper ports capable of connecting to existing Cat.5 twisted-pair cables, this switch eliminates the need for a complex reconfiguration process. The DES-1210-28P allows for a flexible connection to a backbone or servers. Additionally, all ports support auto-negotiation of MDI/MDI-X crossover, or configurable auto-MDI, and therefore do away with crossover cables or uplink ports. This brings inexpensive and easy connectivity to your desktop. In addition, the DES-1210-28P supports a power budget of up to 193W, supporting both 802.3at PoE devices up to 30W and 802.3af devices up to 15.4W.
| HARDWARE FEATURES |
| Dimensions (L x W x H ) |
440mm x 250 mm x 44mm |
| Power Supply |
Maximum Power Consumption : PoE on <br>263.9 W/100 V<br> 247.4 W/240 V <br>PoE off<br> 30.6 W/100 V <br>28.1 W/240 V
Standby Power Consumption : 19.6 W/100V / 16.6 W/240V |
| Weight |
3.75 kg |
| Main Feature |
| Type |
100BASE-TX Fast Ethernet |
| Port |
24 |
| Network Standard |
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 (twisted-pair copper)
Auto-negotiation
IEEE 802.3x Flow Control |
| Data Transmission Rate |
10/100Mbps |
| MAC Address Table |
8K |
| Manufacture Warranty |
| Warranty |
01 Year Warranty |
