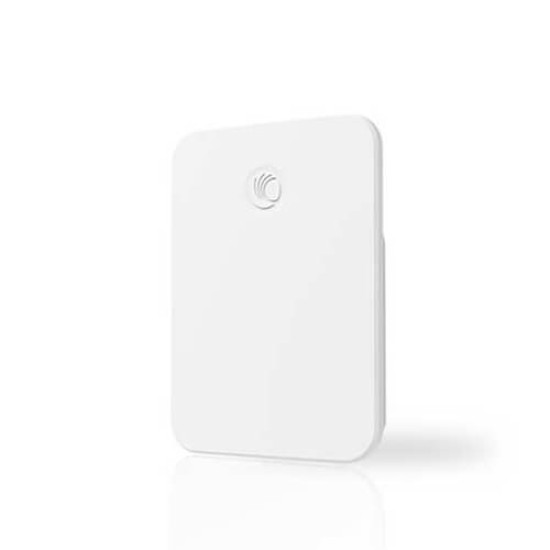

Cambium cnPilot e510 Outdoor Access Point:
Ideal for outdoor communities, public Wi-Fi, or enterprise Wi-Fi, this Omni-directional access point is tailored to low-, medium- and high-density applications. The Cambium Networks cnPilot e510 is designed with an integrated mounting bracket & internal antennas to make installation a snap and repeatable from one site to the next.
The Cambium Networks e510 is rail shock and vibration certified and includes extended surge and ESD protection. Operating temperature spans -40°C to 65°C for a wide range of applications.
| US-FCC |
Ch 1–11, 36–64, 100–140, 149–165 |
| ISED Canada |
Ch 1–11, 36–64, 100–116, 149–165 |
| EU-ETSI |
Ch 1–13, 36–64, 100–140 |
| ROW |
Ch 1–13, 36–64, 100–144, 149–173 |
| Radios |
1 x 5 GHz radio (802.11 a/n/ac Wave 2), 2x2
1 x 2.4 GHz (802.11 b/g/n), 2x2
SU-MIMO / MU-MIMO: 2 streams |
| Wi-Fi |
802.11 a/b/g/n/ac |
| SSID Security |
WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max PHY Rate |
2.4 GHz radio: 400 Mbps
5 GHz radio: 867 Mbps |
| Ethernet |
1 IEEE Gigabit, auto-sensing |
| Antenna |
Internal Omni-directional
2.4 GHz: 8 dBi
5 GHz: 9 dB |
| Max EIRP |
2.4 GHz: 32 dBm
5 GHz: 34.5 dBm |
| WLAN |
256 clients, 32 SSIDs (16 per radio)
WPA-TKIP, WPA2 AES, 802.1x,
802.11w PMF |
| Power |
802.3af or 802.3at powered device
Typical load: 10W, Max: 12.95W |
| Mounting |
Integrated pole, wall mount |
| Dimensions |
290 mm x 208 mm x 78 mm
(11.32 in x 8.19 in x 3.07 in) |
| Weight |
1,100 g (2.43 lbs) |
| LEDs |
Single Tri-color LED
(amber, blue, green) |
| Ambient Operation Temperature |
-40ºC to 65ºC |
| Storage Temperature |
-40ºC to 70ºC |
| Humidity |
95% RH non-condensing |
| MTBF |
420k hours |
| Certifications |
Wi-Fi Alliance 80211a/b/g/n/ac,
Passpoint 2.0
FCC, ETSI, CE, EN 60601-1-2, IEC60950
UL2043 |
What is the price of the Cambium cnPilot e510 Outdoor Access Point in Bangladesh?
The latest price of the Cambium cnPilot e510 Outdoor Access Point in Bangladesh is 49,000৳. You can buy the Cambium cnPilot e510 Outdoor Access Point at the best price from our website or visit our showroom. Stay connected with our what's Page or Facebook Page.
