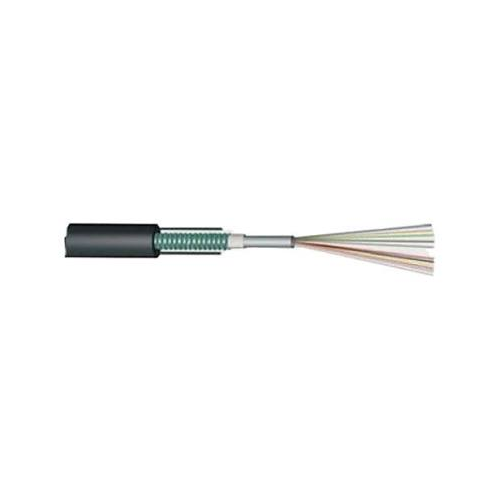

Overview of Vivanco 6 Core Single Mode OS2 Armoured Optical Fiber Cable
The Vivanco Unitube Light Armoured Optical Fiber Cable with 6 Core Single Mode OS2 fiber is a robust outdoor fiber optic cabling solution designed for reliable backbone, LAN, MAN, WAN, and long-distance network infrastructure. Its unitube construction keeps the optical fibers protected inside a high-strength loose tube, while the light armouring provides additional mechanical and moisture protection for demanding outdoor installations.
The cable uses OS2 single-mode optical fiber with a 9/125µm fiber construction and a PE outer jacket. Its construction incorporates water-resistant filling material, a protective PSP/steel tape layer, and parallel steel wires that enhance tensile strength. The design provides a practical balance between mechanical protection, flexibility, compact size, and installation convenience. :contentReference[oaicite:0]{index=0}
Why Choose Vivanco 6 Core OS2 Armoured Fiber Cable?
The Vivanco 6 Core Unitube cable is designed for outdoor network infrastructure where optical performance needs to be combined with protection against mechanical stress, moisture, and environmental conditions.
- 6-core Single Mode OS2 optical fiber.
- 9/125µm fiber construction.
- Central unitube loose-tube design.
- Light armoured construction for improved mechanical protection.
- Water-resistant filling compound helps protect the fibers from moisture.
- Protective steel/PSP layer enhances cable strength and moisture resistance.
- Parallel steel wires provide additional tensile strength.
- PE outer jacket designed for outdoor use.
- Compact and relatively lightweight construction.
- Suitable for duct and aerial installation.
Technical Specifications
| Feature |
Specification |
| Brand |
Vivanco |
| Product Type |
Unitube Light Armoured Optical Fiber Cable |
| Part Number |
VCFAUUS06S2PE |
| Fiber Count |
6 Core |
| Fiber Type |
Single Mode |
| Fiber Category |
OS2 |
| Fiber Size |
9/125µm |
| Cable Construction |
Unitube / Central Loose Tube |
| Armour Type |
Light Armoured Steel Tape / PSP with Steel Wires |
| Outer Jacket |
PE (Polyethylene) |
| Jacket Color |
Black |
| Installation |
Duct / Aerial |
| Operating Temperature |
-40°C to +70°C |
| Minimum Bend Radius |
10D Static / 20D Dynamic |
| Attenuation @ 1310nm |
≤ 0.36 dB/km |
| Attenuation @ 1550nm |
≤ 0.22 dB/km |
| Short-Term Tensile Strength |
Up to 1500N |
| Long-Term Tensile Strength |
Up to 600N |
| Standards / Compliance |
ISO/IEC 11801, ANSI/EIA-568-C.3, TIA-598-C, EN50173, TIA/EIA-526-7 |
Optical Performance of Vivanco OS2 Fiber Cable
The Vivanco OS2 single-mode fiber is designed for low-loss optical transmission. The published specifications indicate maximum attenuation of ≤0.36 dB/km at 1310nm and ≤0.22 dB/km at 1550nm. This makes the cable suitable for high-capacity fiber backbone and long-distance single-mode network deployments. :contentReference[oaicite:1]{index=1}
Armoured Construction & Protection
The unitube structure places the fibers inside a protective loose tube filled with water-resistant compound. A protective PSP/steel layer and parallel steel wires provide additional mechanical and moisture protection, while the PE outer jacket is designed for outdoor environments. This construction helps the cable withstand pulling forces and physical stress during installation while maintaining a compact profile. :contentReference[oaicite:2]{index=2}
Applications of Vivanco 6 Core OS2 Fiber Cable
The cable is suitable for a wide range of professional optical networking installations.
- Outdoor Fiber Backbone Networks
- LAN, MAN & WAN Infrastructure
- ISP Fiber Networks
- Telecommunication Networks
- Enterprise Backbone Connectivity
- Data Center Fiber Infrastructure
- Campus Network Backbone
- Fiber-to-Building Deployments
- Duct Installations
- Aerial Fiber Installations
Benefits of Using Vivanco Unitube Light Armoured Fiber Cable
- Enhanced protection compared with standard unarmoured fiber cable.
- Low attenuation for reliable long-distance optical transmission.
- Water-resistant construction for outdoor deployments.
- PE jacket provides protection in outdoor environments.
- Compact unitube design simplifies installation.
- 6-core configuration provides additional fiber capacity for network expansion.
- Suitable for backbone and high-speed network infrastructure.
Compatibility
The Vivanco 6 Core OS2 fiber cable can be used with compatible single-mode fiber optic equipment, including SFP/SFP+, SFP28, QSFP/QSFP28 optical transceivers, fiber patch panels, ODFs, splice closures, fiber termination boxes, media converters, optical distribution systems, and enterprise or ISP network equipment.
Buy Vivanco 6 Core Single Mode OS2 Armoured Fiber Cable in Bangladesh
If you are looking for a reliable Vivanco 6 Core Single Mode OS2 Armoured Optical Fiber Cable in Bangladesh, this unitube outdoor fiber cable is an excellent choice for backbone, ISP, enterprise, telecom, and outdoor network infrastructure. Its OS2 single-mode fiber, light armoured construction, water-resistant design, and PE outer jacket provide a practical combination of optical performance and mechanical protection.
Why Buy from Independent Tech BD?
- Genuine Fiber Optic Networking Products
- Competitive Price in Bangladesh
- Professional Fiber Networking Solutions
- Corporate & Project Supply
- Technical Support for Network Infrastructure
- Nationwide Delivery
- Reliable After-Sales Service
Frequently Asked Questions (FAQ)
What type of fiber is used in this Vivanco cable?
The cable uses Single Mode OS2 optical fiber with a 9/125µm fiber construction. :contentReference[oaicite:3]{index=3}
How many cores does the Vivanco cable have?
This particular model contains 6 optical fiber cores. The Vivanco coding identifies “06” as the six-core configuration. :contentReference[oaicite:4]{index=4}
Is this fiber cable suitable for outdoor installation?
Yes. It is an outdoor cable with a PE outer jacket and light armoured construction, and it is designed for duct and aerial applications. :contentReference[oaicite:5]{index=5}
What does OS2 mean?
OS2 refers to a single-mode optical fiber category designed for low-loss, long-distance optical communication, commonly used in ISP, telecom, enterprise backbone, and data center networks.
What is the attenuation of this Vivanco OS2 cable?
The published specification lists maximum attenuation of ≤0.36 dB/km at 1310nm and ≤0.22 dB/km at 1550nm. :contentReference[oaicite:6]{index=6}
