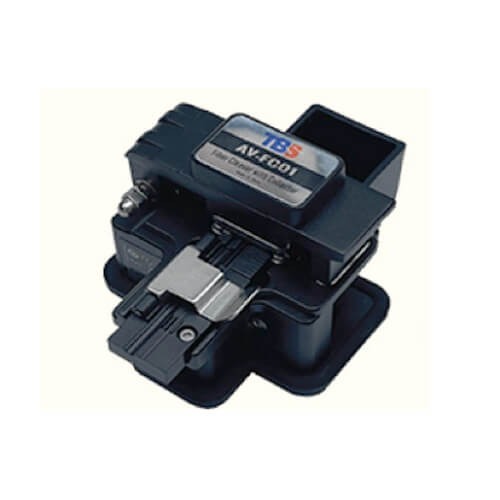

TBS AV-FC01 Fiber Cleaver

TBS AV-FC01 Fiber Cleaver:

The optical fiber cleaver is available with a single fiber adapter for 0.25/0.9mm fiber. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.

Feature

• The average cleave angle: 8°
• Blade cut points: 24
• Blade cut points life: 2000 times/points
• Blade Life: 2000*24 points
• Cleave length: 9-24mm
• Blade diameter: 22mm
• Coating Diameter: 125μm
• Size: 58W*68D*58H(mm)
• Weight: 270g
