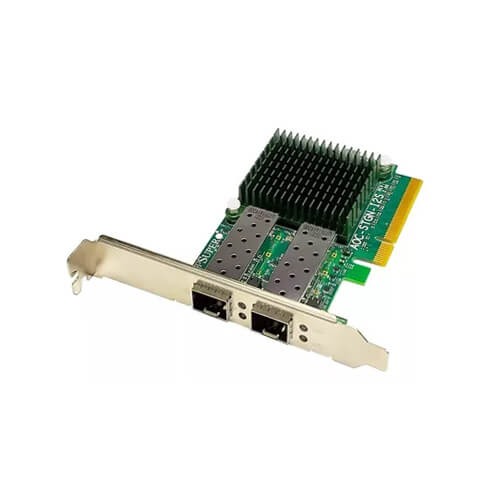

Supermicro AOC-STGN-i2S 10G 2-Port SFP Server Lan Card

Supermicro AOC-STGN-i2S 10G 2-Port SFP Server LAN Card:

The Ultimate Dual-Port 10 Gigabit Ethernet Controller with the Flexibility and Scalability required for Virtual and Unified Storage Environments. The latest member of Supermicro’s network adapter family, the AOC-STGN-i2S is the most flexible and scalable Ethernet adapter for today’s demanding data center environments. Based on the new Intel® 10GbE network controller 82599ES, the AOC-STGN-i2S addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.

• • Key Features
  • Dual SFP+ Connectors
  • Low-Profile Standard Form Factor
  •  PCI Express 2.0 (up to 5GT/s)
  • Intel® Quick Data Technology
  • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
  • Load Balancing on Multiple CPUs
  • iSCSI Remote Boot Support
  • Fibre Channel over Ethernet (FCoE) Support
  • Support for most Network Operating Systems (NOSs)
  • RoHS compliant 6/6
  • General:
  • – Intel® 82599ES 10GbE controller
  • – Compact size low-profile standard form factor
  • – PCI-E x8 2.0 (5GT/s)
    – Load balancing on multiple CPUs
    – iSCSI remote boot support
    – Fibre Channel over Ethernet (FCoE) Support
    – Intel® PROSet Utility for Windows® Device Manager
  • I/O Features:
    – Intel QuickData Technology: DMA engine that enhances data acceleration and lowers CPU usage
    – Direct Cache Access (DCA) to avoid cache misses
    – MSI-X support to minimize the overhead of interrupts and allow load-balancing between multiple cores/CPUs
    – Tx/Rx IP, SCTP, TCP, and UDP checksum offloading capabilities (IPv4, IPv6)
    – Receive and Transmit Side Scaling for Windows environments and Scalable I/O for Linux environments
  • Virtualization Features:
    – IPv6 Offloading
    – Advanced Packet Filtering
    – VLAN support to allow the creation of multiple VLAN segments
  • Manageability Features:
    – Pre boot execution Environment (PXE) support
    – Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters
    – iSCSI remote boot
  • OS Support:
    – Windows Server 2012 (x64 Edition)
    Windows 8 (x64 Edition and 32-bit)
    Windows Server 2008 R2 (x64 Edition, 64-bit)
    Windows Server 2008 (x64 Edition, 64-bit, and 32-bit)
    Windows 7 (x64 Edition and 32-bit)
    Windows Vista (x64 Edition and 32-bit)
    Windows Server 2003 (x64 Edition, 64-bit, and 32-bit)
    – VMWare
    – RedHat EL, SUSE SLES
    – Free BSD
  • Cables Support:
    – SFP+ directly attached twin axial cables, up to 10 meters
    – Dual LC fiber-optic SR cables, up to 300 meters
  • Operating Conditions:
    – Operating temperature: 0°C to 55°C
  • Physical Dimensions:
    – Card PCB dimensions: 10.16cm (4.00in) x 6.90cm (2.73in)
    – Height of end brackets: standard – 12cm (4.725in), low-profile – 7.94cm (3.13in)
