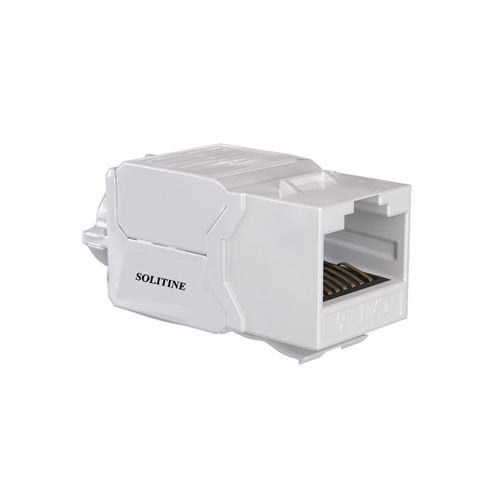

SOLITINE SOL-6A-F180B CAT6A Keystone Jack/Modular Jack

SOLITINE SOL-6A-F180B CAT6A Keystone Jack/Modular Jack
-6 %
SOLITINE SOL-6A-F180B CAT6A Keystone Jack/Modular Jack
  • Price: 690৳
  • special price: 650৳
  • Status: In Stock
  • Brand: SOLITINE
  • Model: Model
650৳
690৳
Ex Tax: 650৳
WhatsApp Inquiry
অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

    • Brand: SOLITINE
    • Model: SOL-6A-F180B
    • Type: CAT6A Modular Jack
    • Warranty: No Warranty
SOLITINE SOL-6A-F180B CAT6A Keystone Jack/Modular Jack:
Features:
  • RJ45 8P 8C 50u Jack
  • Terminating 4 pairs, 23-26 AWG Cable
  • Universal labels color-coded for T568A and T56 8B wiring schemes
  • Fitting high-density keystone panel
  • 3P/ETL/UL/RoHS certified
  • Perform dual function punch down
Specifications:
  • RJ45 Jack: Housing: ABS+PC, UL 94V-0, Black color. Contact Bracket: PC, UL 94V-2, Transparent color.
  • RJ45 jack Contact: Material: Phosphor Bronze with Nickel Plated, Finish: 50 micro-inch Gold Plated on the plug contact area.
  • Cap A&B: Nylon Fiber, Black color.
  • IDC: Housing: PC + Glass Fiber, Grey color (RAL7035), UL 94V-2. Terminal: Phosphor Bronze with Tin Plated
  • IDC CAP: PC + Glass Fiber, UL 94-V2, White color.
  • PCB: FR4, UL 94V-0
Performance:
  • T568A & T568B wiring sticker
  • Insertion force: 20N max (IEC 60603-7-4)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -10�C to 60�C (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2)
  • Life ( Mating Cycles):
  • Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4)
  • IDC: suitable for 23-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools.
  • Tool-less: when using the IDC Cap for wire management.
  • The Cat6A transmission performance is in compliance with the ANSI/TIA/EIA 568 C.2 standard

What is the price of the SOLITINE SOL-6A-F180B CAT6A Keystone Jack/Modular Jack in Bangladesh?

The latest price of the SOLITINE SOL-6A-F180B CAT6A Keystone Jack/Modular Jack in Bangladesh is 650৳. You can buy the SOLITINE SOL-6A-F180B CAT 6A Keystone Jack/Modular Jack at the best price from our website or visit our showroom. Stay connected with our what's Page or Facebook Page.
