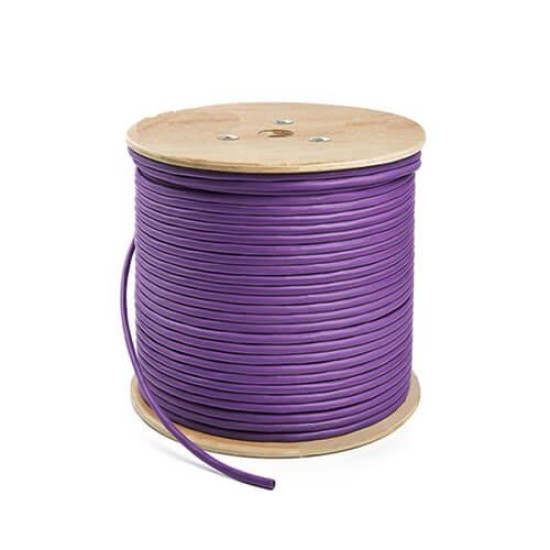

Safenet Cat7 S/FTP LSZH Solid Cable 23AWG Purple 305M Roll | 52-5351PL

Safenet Cat7 S/FTP LSZH Solid Cable 23AWG Purple 305M Roll | 52-5351PL:

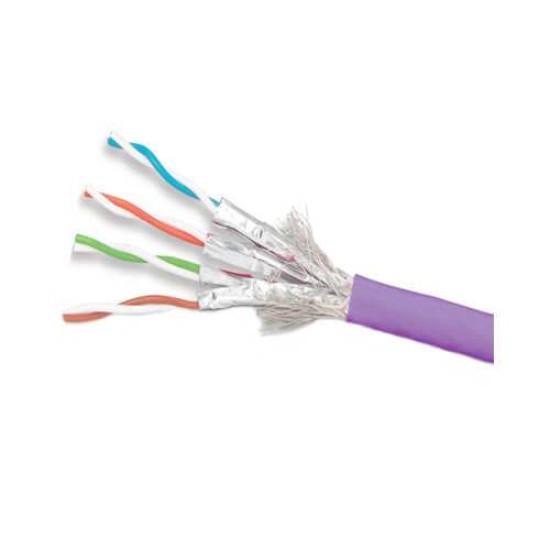

SFTP Cat7 23AWG LSZH Solid Cable

SAFENET 4-Pair SFTP Cat7 LSZH cable has been designed to support high-speed data transmission systems such as Gigabit Ethernet for mission-critical LAN applications or future-proofing Structured Cabling Systems. The cable is characterized to 600MHz and Powersum NEXT tested. We confirm that the cable is used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.

Complied Standards

• ISO/IEC 11801:2011(Ed.2.2)
• IEC 61156-5:2009(Ed.2.0)
• EN 50173-1:2011
• EN 50173-2:2007 including amendment A1:2010
• ANSI/TIA-568-C.2:2009
• TIA/EIA-568B.2-2001

• Compliant to EN50173, EN50288-4-1, ISO/IEC11801, ISO/IEC61156-5
• 23 AWG SOLID-Bare Copper Conductor
• Characterized and tested up to 600MHz
• 4 Pair with LSZH Outer Jacket
• ROHS Compliant & UL Approval, DELTA, GHMT
• Print legend contains footage marking from 305M to 001M

Application

• IEEE 802.3: 10G BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T
• ANSI/TIA/EIA-854: 10G BASE-TX
• 155 Mb/s, 1.2/2.4 Gb/s ATM
• ANSI X3.263: 100 Mb/s
• IEEE 802.3af DTE Power (POE)
• 4/16 Mb/s Token Ring
• Digital Video
• Broadband and Baseband Analog Video
