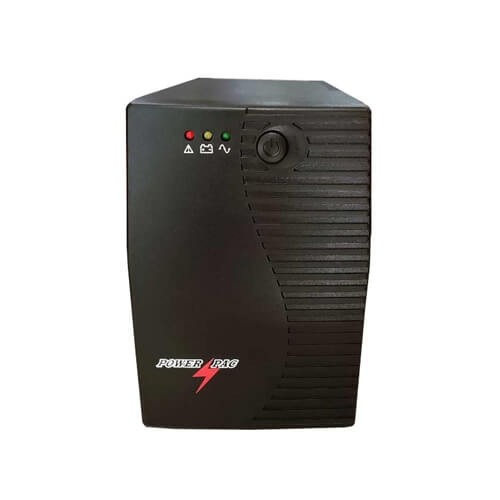

Overview of Power Pac 1200VA Offline UPS
The Power Pac 1200VA Offline UPS is an uninterruptible power supply designed to provide backup power and protection for desktop computers, monitors, networking equipment, and other compatible electronic devices.
With a 1200VA capacity and 720W load capacity, this UPS is suitable for higher-power desktop configurations and multiple connected peripherals. It supports an input voltage range of 160-270V and provides 220-230VAC ±10% output.
The UPS uses sealed, maintenance-free lead-acid batteries and includes automatic voltage regulation, overload protection, short-circuit protection, and spike protection. Its plastic-body construction provides a compact desktop form factor for home and office environments.
Key Features
- 1200VA Capacity: Provides 1200VA of UPS capacity for compatible computer and electronic equipment.
- 720W Load Capacity: Supports connected loads up to 720W within the specified operating conditions.
- Wide Input Voltage: Accepts 160-270V AC input to accommodate common mains voltage fluctuations.
- 220-230VAC Output: Provides regulated output of 220-230VAC ±10%.
- Offline UPS Design: Provides battery backup during mains power interruptions.
- Maintenance-Free Battery: Uses sealed lead-acid batteries for convenient backup-power operation.
- Spike Protection: Provides 460 Joules of specified spike protection.
- Overload & Short-Circuit Protection: Includes automatic shutdown and protection functions for abnormal electrical conditions.
- Built-in Stabilizer: Helps regulate output voltage during normal mains operation.
- Plastic Body: Compact plastic enclosure suitable for desktop placement.
Technical Specifications
| Specification |
Details |
| Brand |
Power Pac |
| Model |
1200VA |
| Product Type |
Offline UPS |
| Capacity |
1200VA |
| Load Capacity |
720W |
| Input Voltage |
160-270VAC |
| Output Voltage |
220-230VAC ±10% |
| Frequency |
50/60Hz ±5% |
| Output Waveform |
Simulated / Modified Sine Wave |
| Transfer Time |
Approximately 2-4ms |
| Battery Type |
Sealed Maintenance-Free Lead Acid |
| Battery Configuration |
2 × 12V, 8.2Ah |
| Backup Time |
Approximately 25-35 minutes depending on load |
| Spike Protection |
460 Joules |
| Output Connections |
2 Ports |
| Body Material |
Plastic |
| Cable Length |
Approximately 1 meter |
| Dimensions |
Approximately 114.3 × 292.1 × 190.5mm |
| Weight |
Approximately 8.7kg |
| Warranty |
1 Year |
1200VA and 720W Power Capacity
The Power Pac 1200VA Offline UPS provides a 1200VA capacity with a specified 720W load capacity. This provides more available power than smaller 650VA and 850VA UPS models and makes it suitable for more demanding desktop configurations.
The total connected load should remain below the 720W maximum rating. Users should calculate the combined power consumption of the computer, monitor, networking equipment, and other devices before connecting them to the UPS.
Wide Input Voltage Range
The UPS accepts an input voltage range of 160-270VAC. This allows it to operate across a relatively wide range of mains-voltage conditions while its built-in stabilization helps maintain suitable output voltage for connected equipment.
The specified output voltage is 220-230VAC ±10% during normal operation.
Offline UPS Operation
The Power Pac 1200VA is an offline or standby UPS. Under normal mains conditions, connected equipment operates from the utility supply while the UPS monitors the incoming voltage. When mains power fails or moves outside the supported range, the UPS switches to battery operation.
The listed transfer time is approximately 2-4ms, helping minimize interruption during the transition from mains power to battery operation.
Maintenance-Free Battery
The UPS uses sealed maintenance-free lead-acid batteries. The listed configuration uses two 12V 8.2Ah batteries to provide stored energy for backup operation.
Backup duration varies according to the connected load, battery condition, battery age, and operating environment. Published specifications indicate approximately 25-35 minutes under the specified test/load conditions.
Protection Features
The Power Pac 1200VA UPS incorporates several protection mechanisms designed to help protect the UPS and connected equipment against common electrical problems.
- Overload Protection: Automatically shuts down under specified overload conditions.
- Short-Circuit Protection: Cuts UPS output in the event of a short circuit.
- Spike Protection: Provides 460 Joules of spike protection.
- Over-Discharge Protection: Helps protect the battery from excessive discharge.
- Fuse Protection: Provides additional protection against abnormal electrical conditions.
- Automatic Self-Test: Performs automatic checks of UPS operation.
Desktop Plastic Body Design
The Power Pac 1200VA Offline UPS uses a plastic body with dimensions of approximately 114.3 × 292.1 × 190.5mm. Its desktop-oriented design makes it suitable for placement near computers, monitors, and office equipment.
Applications
- Desktop computers
- Gaming and workstation PCs within the rated load
- Office computers
- Computer and monitor combinations
- Routers and networking equipment
- Modems
- CCTV and surveillance equipment
- Small office IT equipment
- Home computing systems
- Other compatible electronic equipment
Compatibility Notice
Do not exceed the 720W load capacity. The 1200VA rating refers to apparent power capacity and does not mean the UPS can continuously supply 1200W of active power.
The UPS uses a simulated/modified sine-wave output. Equipment that specifically requires a pure sine-wave supply should be evaluated for compatibility before purchase.
For computers with high-power graphics cards, workstations, servers, or other demanding loads, verify actual power consumption and startup requirements before connecting the equipment.
Why Choose the Power Pac 1200VA Offline UPS?
The Power Pac 1200VA provides a combination of higher capacity, 720W load support, wide input voltage operation, battery backup, voltage stabilization, and electrical protection in a compact plastic-body design.
It is a practical solution for users who need more backup capacity than a basic 650VA or 850VA UPS while maintaining a relatively simple offline UPS architecture.
Buy Power Pac 1200VA Offline UPS in Bangladesh
The Power Pac 1200VA Offline UPS is suitable for home users, offices, small businesses, and IT environments requiring backup power for compatible computer and electronic equipment in Bangladesh.
Before purchasing, verify the total connected load, desired backup duration, output waveform requirements, battery configuration, and compatibility of the equipment being powered.
