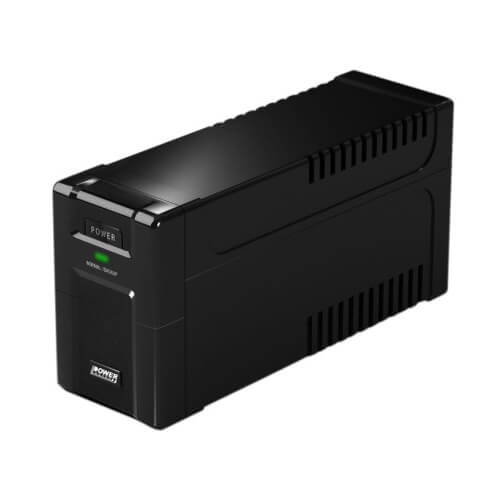

Overview of Power Guard PG650VA-CS 650VA Offline UPS

The Power Guard PG650VA-CS 650VA Offline UPS is a compact desktop uninterruptible power supply designed to provide backup power and voltage protection for computers, networking devices, office equipment, and other compatible electronics.

With a 650VA capacity and 390W load capacity, the UPS is designed for small to medium desktop and electronic loads. It accepts a wide input voltage range of 145-280V and provides regulated 220/230VAC ±10% output.

The UPS uses a maintenance-free lead-acid battery and provides backup power during mains interruptions. Its plastic body construction offers a practical and lightweight desktop form factor for home and office use.

Key Features

• 650VA Capacity: Provides a 650VA UPS capacity for compatible home and office equipment.
• 390W Load Capacity: Supports a maximum connected load of up to 390W.
• Wide Input Voltage: Accepts an input voltage range of 145-280VAC.
• 220/230VAC Output: Provides regulated output voltage of 220/230VAC ±10%.
• Maintenance-Free Battery: Uses a lead-acid maintenance-free battery for backup power.
• AVR Function: Built-in automatic voltage regulation helps stabilize the output during voltage fluctuations.
• Overload & Short-Circuit Protection: Provides protection against overload and short-circuit conditions.
• LED Status Display: Provides visual status indications for operating conditions.
• Plastic Body: Compact plastic enclosure designed for desktop placement.
• Fast Transfer: Typical transfer time is approximately 2-6ms.

Technical Specifications

650VA UPS Capacity

The Power Guard PG650VA-CS provides a 650VA capacity with a maximum load rating of 390W. This makes it suitable for compatible desktop computers, monitors, routers, networking devices, and other electronics that fall within the UPS's rated capacity.

When selecting equipment for connection, calculate the combined power consumption of all devices. The total load should remain below the 390W maximum rating for reliable operation and appropriate backup performance.

Wide Input Voltage Range

The UPS accepts an input voltage range of 145-280VAC. This wide input range helps the UPS accommodate fluctuations in the incoming electrical supply without immediately switching to battery operation.

The built-in voltage regulation function helps provide a more stable output for connected equipment during normal mains operation.

Backup Battery

The PG650VA-CS uses a 12V 7.2Ah maintenance-free lead-acid battery. When mains power fails, the UPS switches to battery operation to keep connected equipment powered for a limited period.

Backup time varies according to the connected load. Published specifications indicate approximately 5-40 minutes depending on load, while some listings specify up to approximately 15 minutes under particular load conditions. Actual runtime will depend on equipment power consumption and battery condition.

AVR and Voltage Protection

The UPS includes Automatic Voltage Regulation (AVR) and high/low voltage protection. These features help protect compatible connected equipment against common mains-voltage fluctuations.

The unit also provides overload and short-circuit protection to help protect the UPS and connected equipment under abnormal electrical conditions.

Offline UPS Operation

The PG650VA-CS is an offline UPS, also known as a standby UPS. Under normal mains conditions, connected equipment operates from the utility supply while the UPS monitors the input. During a power interruption, the UPS switches to battery operation.

The typical transfer time is specified as approximately 2-6ms. Actual transfer behavior depends on operating conditions and connected equipment.

LED Status Indication

The UPS uses an LED display to indicate operating status. Available specifications identify different visual indications for AC operation, battery operation, and overload conditions.

• AC Mode: Green indication
• Battery Mode: Red indication
• Overload: Yellow indication

Plastic Body Design

The Power Guard PG650VA-CS features a plastic body with a compact desktop-oriented design. Its approximately 88.9 × 304.8 × 139.7mm dimensions make it suitable for placement beside or under compatible computer and office equipment.

Applications

• Desktop computers
• Office computers
• Home computers
• Monitors within the rated load
• Wi-Fi routers
• Network equipment
• Modems
• CCTV and networking devices
• Small office electronics
• Other compatible electronic equipment

Compatibility Notice

Do not exceed the 390W load capacity. The 650VA rating does not mean the UPS can continuously power a 650W load. The specified maximum active power capacity is 390W.

For computers with high-power processors or graphics cards, calculate the actual system power consumption before connecting the equipment. The UPS is best suited to loads that remain comfortably within its rated capacity.

Devices requiring a pure sine-wave power source should also be evaluated separately because this model is specified with a modified-sine-wave output.

Why Choose the Power Guard PG650VA-CS?

The Power Guard PG650VA-CS combines a 650VA capacity, 390W load rating, AVR, wide input voltage range, maintenance-free battery, and overload protection in a compact plastic-body UPS.

It is a practical option for users who need short-duration battery backup and voltage protection for computers, networking equipment, and other compatible home or office electronics.

Buy Power Guard PG650VA-CS 650VA UPS in Bangladesh

The Power Guard PG650VA-CS 650VA Offline UPS is suitable for home users, offices, small businesses, and IT installations requiring backup power for compatible electronic equipment in Bangladesh.

Before purchasing, verify the total load, required backup duration, output waveform requirements, battery condition, and connected equipment compatibility.

Why Buy from Independent Tech BD?

• Networking & IT Products
• Competitive Price in Bangladesh
• Enterprise IT Solutions
• Corporate & Project Supply
• Technical Assistance
• Product Compatibility Support
• Nationwide Delivery
• Reliable After-Sales Service

Independent Tech BD supplies UPS systems, networking equipment, server hardware, and IT infrastructure products for home, business, corporate, and enterprise requirements.

Frequently Asked Questions

What is the Power Guard PG650VA-CS?

The Power Guard PG650VA-CS is a 650VA offline UPS with a 390W maximum load capacity and a plastic body.

What is the load capacity of the Power Guard 650VA UPS?

The specified maximum load capacity is 390W.

What input voltage does this UPS support?

The UPS accepts an input voltage range of 145-280VAC.

What output voltage does the Power Guard PG650VA-CS provide?

It provides 220/230VAC ±10% output.

What type of battery does the UPS use?

The UPS uses one 12V 7.2Ah maintenance-free lead-acid battery.

How long can the Power Guard 650VA UPS provide backup?

Published specifications indicate approximately 5-40 minutes depending on load. Actual backup time varies according to the connected equipment and battery condition.

Does this UPS have AVR?

Yes. The PG650VA-CS includes built-in Automatic Voltage Regulation (AVR).

Is the Power Guard PG650VA-CS a pure sine-wave UPS?

No. Available specifications identify its output waveform as modified sine wave.

Does this UPS have overload protection?

Yes. The available specifications identify overload and short-circuit protection.

How many output connections does it have?

The available specification identifies 2 output ports on the rear panel.

What is the body material?

The PG650VA-CS uses a plastic body and is listed in black.

Where can I buy the Power Guard 650VA UPS in Bangladesh?

The Power Guard PG650VA-CS 650VA Offline UPS is available through Independent Tech BD and other authorized Bangladesh IT retailers.
