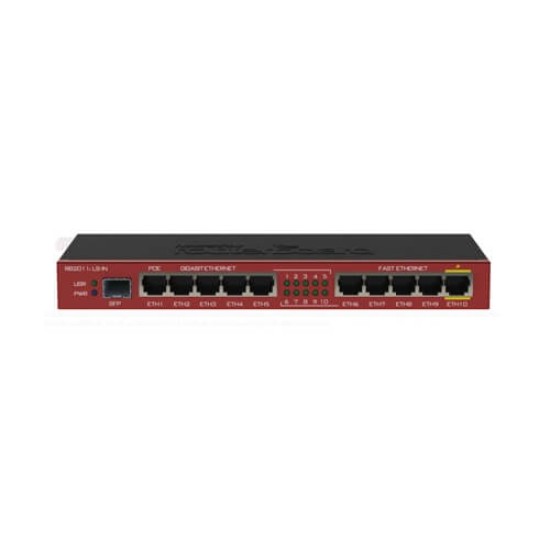

Mikrotik RB2011UiAS-IN Gigabit Router
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
| Product code |
RB2011UiAS-IN |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Switch chip model |
AR8327 |
| Dimensions |
214mm x 86mm for PCB |
| RouterOS license |
5 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200’000 hours at 25C |
| Tested ambient temperature |
-40°C to 60°C |
|
|
Powering
| Details |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
6 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
PoE-out
| Details |
| PoE-out ports |
Ether10 |
| PoE out |
Passive PoE |
| Max out per port output (input 18-30 V) |
510 mA |
| Max total out (A) |
510 mA |
Ethernet
| Details |
| 10/100 Ethernet ports |
5 |
| 10/100/1000 Ethernet ports |
5 |
Fiber
| Details |
| SFP DDMI |
Yes |
| SFP ports |
1 |
Peripherals
| Details |
| Serial console port |
RJ45 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
2 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Beeper |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
