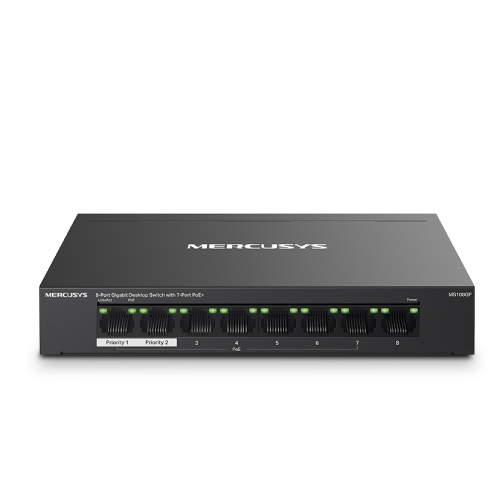

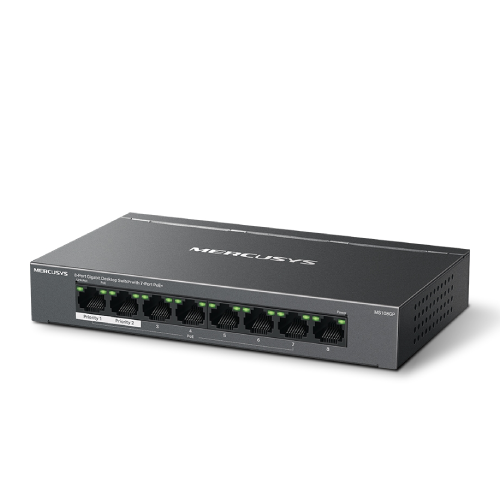

Overview of Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+
The Mercusys MS108GP 8-Port Gigabit Desktop Switch is a high-performance unmanaged PoE switch designed to deliver both Gigabit data transmission and reliable power over Ethernet for modern network infrastructures. Equipped with seven IEEE 802.3af/at compliant PoE+ ports and one Gigabit uplink port, this switch simplifies network deployment by transmitting power and data through a single Ethernet cable.
With a generous 120W total PoE power budget, the MS108GP is ideal for powering IP surveillance cameras, wireless access points, VoIP phones, IP intercom systems, and other PoE-enabled devices. Its Gigabit switching performance, intelligent PoE management, and plug-and-play operation make it an excellent choice for business networks, offices, retail stores, educational institutions, hotels, and enterprise surveillance systems.
Why Choose the Mercusys MS108GP 8-Port Gigabit PoE Switch?
The Mercusys MS108GP combines high-speed Gigabit networking with intelligent PoE technology, making network expansion faster, cleaner, and more cost-effective. Whether you're deploying a new surveillance system or upgrading an existing office network, this switch delivers dependable performance with minimal setup.
- 8 × 10/100/1000Mbps Gigabit RJ45 ports.
- 7 IEEE 802.3af/at compliant PoE+ ports.
- 120W total PoE power budget.
- Supports up to 30W output per PoE port.
- Extend Mode supports PoE transmission up to 250 meters.

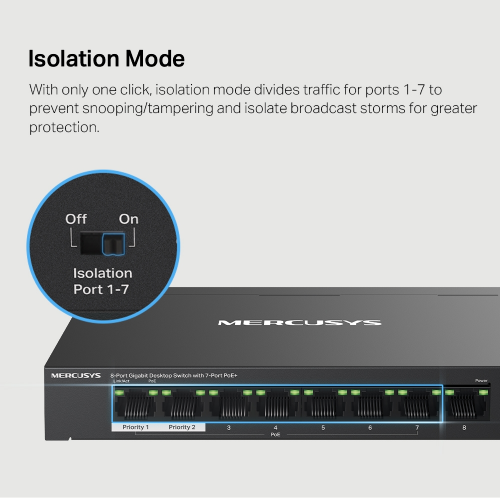

- Isolation Mode improves network security and stability.
- Priority Mode ensures uninterrupted power for critical devices.
- Plug-and-play installation without software configuration.

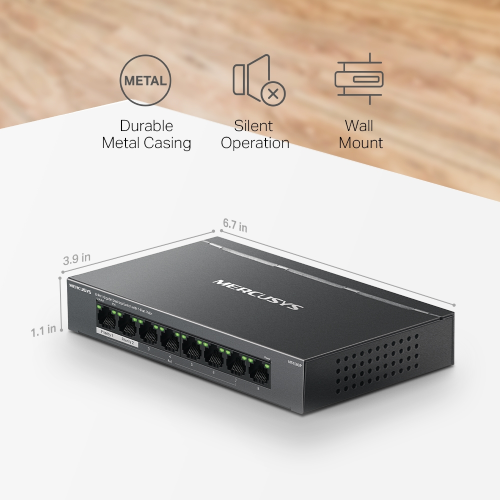

- Fanless metal housing for silent operation.
- Reliable performance for 24/7 network operation.
Technical Specifications of Mercusys MS108GP 8-Port Gigabit Desktop Switch
| Brand | Mercusys |
|---|
| Model | MS108GP |
|---|
| Product Type | Unmanaged Gigabit PoE+ Switch |
|---|
| Total Ports | 8 × 10/100/1000Mbps RJ45 Ports |
|---|
| PoE Ports | 7 × IEEE 802.3af/at PoE+ Ports |
|---|
| PoE Standards | IEEE 802.3af / IEEE 802.3at |
|---|
| Maximum PoE Output Per Port | 30W |
|---|
| Total PoE Budget | 120W |
|---|
| Switching Capacity | 16Gbps |
|---|
| Packet Forwarding Rate | 11.9Mpps |
|---|
| MAC Address Table | 4K Entries |
|---|
| Transmission Distance | Up to 250m (Extend Mode) |
|---|
| Forwarding Method | Store-and-Forward |
|---|

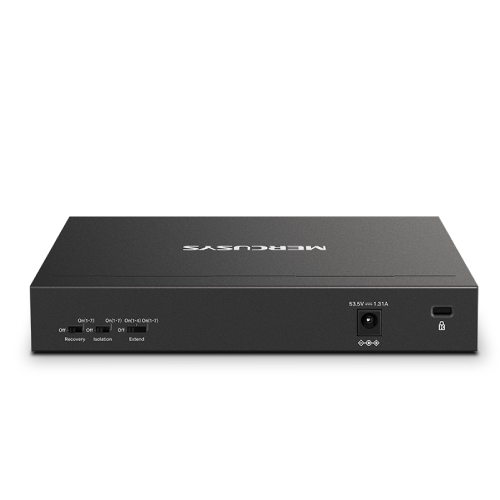

| Modes | Standard, Extend, Isolation, Priority |
|---|
| Installation | Desktop / Wall Mount |
|---|
| Housing | Metal |
|---|
| Cooling | Fanless Design |
|---|
Applications of Mercusys MS108GP 8-Port Gigabit Desktop Switch
The Mercusys MS108GP is suitable for powering multiple PoE devices while delivering reliable Gigabit connectivity in professional networking environments.
- IP Surveillance Systems
- CCTV Camera Installations
- Wireless Access Points
- VoIP Telephone Systems
- IP Intercom Systems
- Office Networks
- Retail Stores
- Hotels & Hospitality
- Educational Institutions
- Small Business Networks
Benefits of Using the Mercusys MS108GP
- Power and data over a single Ethernet cable.
- Reduces installation costs and cable clutter.
- Supports high-speed Gigabit network performance.
- Intelligent PoE management protects connected devices.
- Extend Mode supports long-distance PoE deployment.
- Isolation Mode improves network security.
- Fanless operation ensures silent performance.
Compatibility
The Mercusys MS108GP is compatible with IEEE 802.3af and IEEE 802.3at compliant PoE devices, including IP cameras, wireless access points, VoIP phones, IP intercoms, network video recorders, PoE splitters, and other Gigabit Ethernet networking equipment.
Buy Mercusys MS108GP 8-Port Gigabit PoE Desktop Switch in Bangladesh
If you're looking for the original Mercusys MS108GP 8-Port Gigabit Desktop Switch in Bangladesh, this unmanaged PoE switch offers an ideal solution for surveillance, enterprise networking, and commercial deployments. Its 120W PoE budget, Gigabit performance, and intelligent management features ensure stable and efficient operation for demanding network environments.
Why Buy from Independent Tech BD?
- 100% Genuine Mercusys Products
- Competitive Price in Bangladesh
- Professional Networking Solutions
- Corporate & Project Supply
- Experienced Technical Support
- Fast Nationwide Delivery
- Reliable After-Sales Service
Frequently Asked Questions (FAQ)
How many PoE devices can the MS108GP support?
The switch includes seven PoE+ ports and can power up to seven IEEE 802.3af/at compatible devices within its 120W total PoE budget.
Does the switch support Gigabit Ethernet?
Yes. All eight RJ45 ports support 10/100/1000Mbps Gigabit Ethernet connectivity.
What is Extend Mode?
Extend Mode allows PoE transmission distances of up to 250 meters, making it suitable for long-distance surveillance deployments.
Does the switch require configuration?
No. The MS108GP is a plug-and-play unmanaged switch that requires no software configuration.
Is this switch suitable for IP camera systems?
Yes. It is specifically designed for powering and connecting IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
