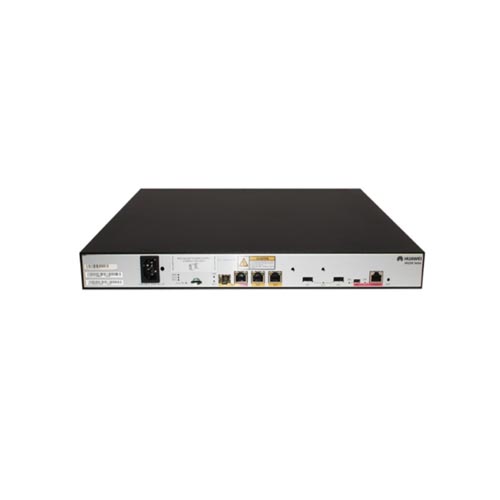

Huawei AR2220E Enterprise Router

Overview of Huawei AR2220E Enterprise Router

The Huawei AR2220E is a modular enterprise router from Huawei's AR2200 series, designed to provide integrated routing, switching, security and network-access capabilities for enterprise and branch-office environments.

The AR2220E provides 2Gbps WAN service throughput, 3 Gigabit Ethernet WAN interfaces including one Combo port, and a modular architecture with 4 SIC slots and 2 WSIC slots. This allows organizations to expand the router with additional interface and service modules as network requirements grow.

Huawei positions the AR2200 series for enterprise networks requiring integrated routing, switching, security and WLAN functions. The AR2220E also supports IPv4/IPv6 routing, MPLS VPN, QoS, firewall, VPN and multiple enterprise authentication and management features. Huawei AR2200 Series Enterprise Routers

Why Choose the Huawei AR2220E?

• Modular enterprise router architecture.
• Up to 2Gbps WAN service throughput.
• 3 × Gigabit Ethernet WAN ports.
• 1 × GE Combo WAN interface.
• 4 × SIC expansion slots.
• 2 × WSIC expansion slots.
• 1GB system memory.
• 512MB Flash memory.
• Comprehensive IPv4 and IPv6 routing.
• Enterprise-grade security and VPN capabilities.
• Optional 3G/LTE interface support.
• Suitable for medium-sized enterprise and branch networks.

Technical Specifications

Specifications are based on Huawei's official AR2220E hardware documentation and AR2200 series documentation. Exact supported features can depend on the installed interface cards and software version. Huawei AR2220E Hardware Description

Modular Enterprise Network Architecture

The major advantage of the Huawei AR2220E is its modular architecture. Instead of being restricted to a fixed set of interfaces, the router provides expansion slots for additional network services and interfaces.

The AR2220E has 4 SIC slots and 2 WSIC slots. Huawei's hardware documentation also explains that supported slot combinations can be used to accommodate larger interface modules when required.

This makes the platform suitable for organizations that expect their network requirements to grow over time.

2Gbps WAN Service Performance

Huawei specifies up to 2Gbps WAN service throughput for the AR2220E. This provides considerably more capacity than entry-level branch routers and makes the platform suitable for enterprise WAN aggregation and larger branch deployments.

Actual throughput can vary according to enabled services, packet size, security functions, interface modules and software configuration.

Gigabit Ethernet WAN Connectivity

The standard AR2220E configuration includes 3 × Gigabit Ethernet WAN interfaces, including one GE Combo interface.

The GE Combo interface provides flexibility for connecting supported Ethernet or optical interfaces, depending on the installed configuration and transceiver/module requirements.

Enterprise Routing Features

The AR2220E supports a broad range of routing protocols for enterprise and service-provider environments. Huawei lists static routing, RIP, OSPF, IS-IS and BGP for IPv4, along with RIPng, OSPFv3, IS-ISv6 and BGP4+ for IPv6 networks.

This makes the router suitable for branch networks that need dynamic routing as well as larger enterprise WAN architectures.

IPv6 Support

The AR2220E supports both IPv4 and IPv6 routing. IPv6 routing protocols include RIPng, OSPFv3, IS-ISv6 and BGP4+, allowing the platform to participate in modern dual-stack enterprise networks.

MPLS & VPN Connectivity

The AR2200 platform supports enterprise VPN technologies and MPLS-based networking. This allows the AR2220E to be deployed as part of private WAN environments where different branch offices or business services need secure logical separation.

Supported VPN capabilities include technologies such as IPsec, L2TP and GRE, with additional MPLS VPN functionality available according to the software and installed interfaces.

Enterprise Security

Security is integrated into the AR2220E platform rather than requiring a separate basic router-only architecture. Huawei's AR2200 documentation covers enterprise security functions including firewall capabilities, ACL, authentication, ARP security and other traffic-control features.

These capabilities can be used to implement access-control policies and protect enterprise WAN and LAN traffic.

WLAN Management

The AR2220E can provide centralized WLAN management capabilities through Huawei's WLAN architecture. Huawei documents AC discovery, AP access and AP management, CAPWAP, WLAN user management, radio management and WLAN security within the AR2200 feature set.

This allows the router to serve as part of an enterprise wired-and-wireless network architecture without requiring every wireless function to be handled independently at each branch.

3G & LTE Expansion

The AR2220E supports optional 3G and LTE interface cards. Huawei's AR2200 documentation lists LTE interface-card support, including FDD LTE interfaces.

This provides an additional WAN option for remote locations, temporary deployments or backup connectivity where cellular service is available.

4 SIC & 2 WSIC Expansion Slots

The modular slot architecture is particularly useful for organizations that need additional interfaces. The AR2220E provides 4 SIC slots and 2 WSIC slots, allowing supported interface and service cards to be installed according to network requirements.

Huawei's hardware documentation also identifies slot-combination options for the AR2220E, providing additional flexibility for larger supported interface modules.

1GB RAM & 512MB Flash

The AR2220E hardware platform includes 1GB system memory and 512MB Flash. It also has a default 2GB Micro SD card and supports a DSP DIMM slot.

This hardware configuration provides the resources required for the router's enterprise routing, security, management and modular service functions.

Enterprise Network Applications

• Medium-Sized Enterprise Networks
• Branch Office Networks
• Enterprise WAN Aggregation
• Corporate Headquarters
• Campus Network Routing
• MPLS VPN Networks
• IPsec VPN Networks
• Service Provider Enterprise Access
• WLAN Controller / AP Management
• 3G/LTE Backup Connectivity

Rackmount Enterprise Design

The AR2220E has a compact 1U-height chassis. Huawei specifies dimensions of approximately 442 × 420 × 44.5mm without mounting ears and approximately 482.6 × 420 × 44.5mm with mounting ears.

The router weighs approximately 6kg and uses a built-in non-swappable fan for cooling. Huawei specifies left-to-right airflow when viewed from the front panel.

Power & Environmental Specifications

The AR2220E supports 100V–240V AC input at 50/60Hz and has a maximum output power rating of 150W. RPS power supply support is available, while PoE power supply is not supported on the standard AR2220E platform.

The specified operating temperature is 0°C to 45°C, with 5%–95% non-condensing relative humidity and an operating altitude below 5000m.

Benefits of Using the Huawei AR2220E

• 2Gbps WAN service performance.
• Modular SIC and WSIC expansion.
• 3 × GE WAN interfaces.
• 1 × GE Combo interface.
• Enterprise IPv4 and IPv6 routing.
• OSPF, IS-IS, BGP and RIP support.
• MPLS and VPN capabilities.
• Enterprise firewall and security functions.
• Optional 3G/LTE connectivity.
• Centralized WLAN management capability.
• 1GB RAM and 512MB Flash.
• Rackmount 1U form factor.

Buy Huawei AR2220E Enterprise Router in Bangladesh

If you're looking for the Huawei AR2220E Enterprise Router in Bangladesh, it is a suitable solution for organizations requiring a scalable and modular enterprise routing platform.

With 2Gbps WAN service throughput, Gigabit Ethernet connectivity, modular SIC/WSIC slots, IPv4/IPv6 routing, MPLS, VPN, enterprise security and optional LTE expansion, the AR2220E is designed for demanding branch and enterprise WAN environments.

Huawei's official documentation confirms the AR2220E hardware configuration, including its 4 SIC slots, 2 WSIC slots, 3 fixed GE WAN interfaces, 1GB memory and 512MB Flash. Huawei AR2220E Hardware Description

Why Buy from Independent Tech BD?

• Genuine Networking Products
• Competitive Price in Bangladesh
• Professional Enterprise Network Solutions
• Corporate & Project Supply
• Technical Support for Router Deployment
• Nationwide Delivery
• Reliable After-Sales Service

Frequently Asked Questions (FAQ)

What is the Huawei AR2220E?

The Huawei AR2220E is a modular enterprise router from the AR2200 series designed for enterprise branch, WAN and integrated network-service deployments.

What is the WAN service speed of the AR2220E?

Huawei specifies up to 2Gbps WAN service throughput for the AR2220E. Huawei AR2200 Series Enterprise Routers

How many Gigabit Ethernet WAN ports does it have?

The standard configuration provides 3 × GE WAN interfaces, including 1 × GE Combo interface.

How many expansion slots are available?

The AR2220E provides 4 × SIC slots and 2 × WSIC slots. Huawei AR2220E Hardware Description

Does the AR2220E support LTE?

Yes. Huawei lists LTE interface-card support for the AR2200 series, allowing cellular connectivity to be added through supported expansion modules.

Does it support BGP and OSPF?

Yes. The AR2220E supports enterprise routing protocols including BGP, OSPF, IS-IS and RIP, along with IPv6 routing protocols such as OSPFv3 and BGP4+.

Does the Huawei AR2220E support IPv6?

Yes. It supports IPv6 routing through protocols including RIPng, OSPFv3, IS-ISv6 and BGP4+.

Does it support VPN?

Yes. The platform supports enterprise VPN technologies including IPsec, L2TP and GRE, as well as MPLS VPN functionality.

Is the AR2220E suitable for a branch office?

Yes. Its modular architecture, WAN performance, security features and optional LTE/WLAN capabilities make it suitable for medium-sized enterprise and branch-office deployments.

What is the difference between AR2220E and AR2220E-S?

They are related AR2200-series enterprise platforms, but the AR2220E-S is a later commercial-standard variant with different hardware/performance specifications. Huawei lists the AR2220E-S with 9Mpps forwarding performance and 400–800 PC capacity, while the AR2220E belongs to the earlier AR2200E hardware generation. Therefore, the exact model suffix should be checked before ordering or comparing specifications. Huawei AR2200-S Series
