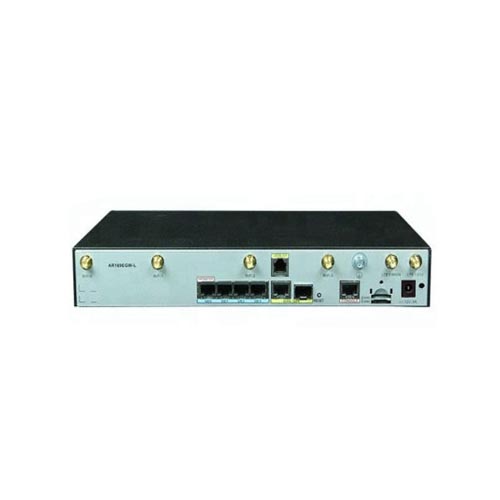

Overview of Huawei AR169EGW-L Enterprise Wireless Wi-Fi Router
The Huawei AR169EGW-L is an enterprise-class wireless access router designed for branch offices, small and medium-sized businesses, enterprise networks, and sites requiring multiple WAN connectivity options. It belongs to Huawei's AR160 series Enterprise Routers and combines wired Ethernet, VDSL2, LTE and Wi-Fi connectivity in a single device.
The AR169EGW-L provides 4 × Gigabit Ethernet LAN ports, a Gigabit Ethernet Combo WAN port, VDSL2 over POTS with bonding, integrated FDD LTE, and dual SIM slots with one active and one standby SIM. Its wireless platform supports 802.11a/b/g/n/ac/ac Wave 2 with 4×4:4 MU-MIMO. Huawei specifies up to 600Mbps WAN service speed with IMIX traffic and recommends the platform for approximately 50 users. :contentReference[oaicite:1]{index=1}
The router also includes enterprise networking and security functions such as firewall, ACL, 802.1X authentication, AAA, RADIUS, HWTACACS, ARP security, URPF, PKI, SNMP, SSH and web-based management. :contentReference[oaicite:2]{index=2}
Why Choose the Huawei AR169EGW-L?
- Multi-WAN enterprise access platform.
- VDSL2 connectivity with bonding support.
- Gigabit Ethernet WAN and LAN interfaces.
- Integrated FDD LTE for backup connectivity.
- Dual SIM slots for cellular redundancy.
- 802.11ac Wave 2 wireless connectivity.
- 4×4:4 MU-MIMO Wi-Fi.
- Up to 600Mbps WAN service speed under IMIX.
- Enterprise-grade security and management features.
- Suitable for branch-office and SMB deployments.
Technical Specifications
| Feature |
Specification |
| Brand |
Huawei |
| Model |
AR169EGW-L |
| Product Series |
AR160 Enterprise Routers |
| Product Type |
Enterprise Wireless Access Router |
| WAN Service Speed |
Up to 600Mbps (IMIX) |
| Recommended Users |
Up to 50 |
| WAN Interface |
1 × GE Combo |
| VDSL2 WAN |
1 × VDSL2 over POTS with Bonding |
| LAN Interfaces |
4 × GE RJ45 |
| LTE |
FDD LTE |
| SIM Slots |
2 × SIM — 1 Active + 1 Standby |
| Wi-Fi Standard |
802.11a/b/g/n/ac / 802.11ac Wave 2 |
| Wi-Fi MIMO |
4×4:4 MU-MIMO |
| USB |
1 × USB 3.0, USB 2.0 Compatible |
| Console / Auxiliary |
1 × Serial Auxiliary / Console Port |
| Memory |
1GB |
| Flash Memory |
512MB |
| Security |
ACL, Firewall, 802.1X, AAA, RADIUS, HWTACACS, ARP Security, URPF, PKI |
| Management |
Web GUI, CLI, SSH, SNMP, RMON, NTP, CWMP, Auto-Config |
| Dimensions (H × W × D) |
44 × 300 × 216.4mm |
| Operating Temperature |
0°C to 45°C |
| Relative Humidity |
5% to 95%, Non-Condensing |
Specifications are based primarily on Huawei's AR160 series documentation. :contentReference[oaicite:3]{index=3}
Multi-WAN Enterprise Connectivity
The AR169EGW-L is designed to provide multiple access technologies in one enterprise router. Its WAN architecture combines VDSL2 over POTS with bonding and a Gigabit Ethernet Combo WAN interface, allowing organizations to deploy the router across different access environments.
The integrated FDD LTE capability adds another connectivity option and can be used for mobile broadband or WAN backup depending on the network configuration. Huawei specifies two SIM slots, with one active and one standby. :contentReference[oaicite:4]{index=4}
VDSL2 with Bonding
The AR169EGW-L supports VDSL2 over POTS with bonding. This makes it suitable for enterprise locations where broadband connectivity is delivered over existing telephone infrastructure.
VDSL2 bonding can combine supported lines to increase available bandwidth and improve the utilization of existing copper access infrastructure.
Integrated FDD LTE Backup
One of the key features of the AR169EGW-L is its integrated FDD LTE capability. With dual SIM slots, the router can provide cellular WAN connectivity and redundancy for locations where wired connectivity may be interrupted.
The hardware specification identifies one active and one standby SIM, allowing the router to support a redundant cellular configuration. :contentReference[oaicite:5]{index=5}
Enterprise Wi-Fi
The AR169EGW-L integrates enterprise wireless functionality based on 802.11a/b/g/n/ac Wave 2. Its 4×4:4 MU-MIMO architecture allows the wireless system to communicate with multiple compatible clients more efficiently than traditional single-user wireless configurations. :contentReference[oaicite:6]{index=6}
This makes the router suitable for branch offices, retail locations, small offices, remote sites and other environments where wired WAN connectivity and local wireless access are required from one platform.
Gigabit Ethernet Connectivity
The router includes 4 × Gigabit Ethernet RJ45 ports for local network devices. These ports can be used for PCs, IP phones, printers, access points, switches, CCTV equipment and other Ethernet-based devices.
The GE interfaces can also be configured for WAN functions according to the platform's supported configuration. Huawei's documentation identifies four fixed GE switching ports and a dedicated GE Combo WAN interface. :contentReference[oaicite:7]{index=7}
Enterprise Security Features
The AR169EGW-L provides a range of enterprise security features designed to protect branch and business networks. Huawei lists ACL, firewall, 802.1X authentication, AAA, RADIUS, HWTACACS, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing and PKI. :contentReference[oaicite:8]{index=8}
These features allow administrators to control network access, authenticate users and devices, filter traffic and implement enterprise security policies.
Network Management
The router supports multiple management methods, including web-based GUI, CLI, SSH, SNMP, RMON, NTP and CWMP. Huawei also documents automatic configuration and USB-based site deployment features for the AR160 series. :contentReference[oaicite:9]{index=9}
The AR169EGW-L is also supported for controller-based connection in Huawei's enterprise network documentation, making it suitable for centralized enterprise network deployment scenarios. :contentReference[oaicite:10]{index=10}
USB 3.0 Connectivity
The router provides one USB 3.0 port with USB 2.0 compatibility. The USB interface can support supported Huawei functions and deployment/management workflows depending on the software version and configuration.
Recommended for Branch Offices
Huawei specifies approximately 50 recommended users for the AR169EGW-L. This makes the router particularly appropriate for small and medium-sized branch environments rather than large campus-core deployments. :contentReference[oaicite:11]{index=11}
- Branch Offices
- Small & Medium Businesses
- Retail Stores
- Remote Offices
- Enterprise Branch Networks
- ISP Customer Premises
- VDSL Broadband Sites
- LTE Backup Sites
- Small Enterprise Wireless Networks
Compact Enterprise Router Design
The AR169EGW-L measures approximately 44 × 300 × 216.4mm, providing a relatively compact footprint for an enterprise access router with integrated VDSL, LTE and Wi-Fi functionality. Huawei specifies an operating temperature range of 0°C to 45°C and relative humidity of 5% to 95% non-condensing. :contentReference[oaicite:12]{index=12}
Benefits of Using the Huawei AR169EGW-L
- Integrated wired, VDSL, LTE and Wi-Fi connectivity.
- 600Mbps WAN service speed under IMIX.
- 4 × Gigabit Ethernet LAN ports.
- Gigabit Combo WAN interface.
- VDSL2 bonding support.
- FDD LTE WAN backup capability.
- Dual SIM architecture.
- 4×4:4 MU-MIMO wireless.
- 802.11ac Wave 2 Wi-Fi.
- Enterprise-grade firewall and authentication features.
- Multiple centralized management options.
Buy Huawei AR169EGW-L Enterprise Wi-Fi Router in Bangladesh
If you're looking for the Huawei AR169EGW-L Enterprise Wireless Wi-Fi Router in Bangladesh, it is designed for branch-office and SMB environments requiring a combination of VDSL, Ethernet, LTE and wireless connectivity.
Its combination of VDSL2 bonding, Gigabit Ethernet, FDD LTE, dual SIM, 802.11ac Wave 2 Wi-Fi and enterprise security makes it a versatile access-router platform for business networks. :contentReference[oaicite:13]{index=13}
The model is officially identified by Huawei as part of the AR160 Enterprise Router family. :contentReference[oaicite:14]{index=14}
Why Buy from Independent Tech BD?
- Genuine Networking Products
- Competitive Price in Bangladesh
- Professional Enterprise Network Solutions
- Corporate & Project Supply
- Technical Support for Router Deployment
- Nationwide Delivery
- Reliable After-Sales Service
Frequently Asked Questions (FAQ)
What is the Huawei AR169EGW-L?
The Huawei AR169EGW-L is an enterprise wireless access router from the AR160 series, combining Gigabit Ethernet, VDSL2, LTE and 802.11ac Wave 2 Wi-Fi. :contentReference[oaicite:15]{index=15}
What is the WAN speed of the AR169EGW-L?
Huawei specifies up to 600Mbps WAN speed with services under IMIX traffic. :contentReference[oaicite:16]{index=16}
How many LAN ports does it have?
It has 4 × Gigabit Ethernet RJ45 LAN ports. :contentReference[oaicite:17]{index=17}
Does the AR169EGW-L support VDSL?
Yes. It supports VDSL2 over POTS with bonding. :contentReference[oaicite:18]{index=18}
Does it support LTE?
Yes. The AR169EGW-L includes FDD LTE and has two SIM slots, one active and one standby. :contentReference[oaicite:19]{index=19}
What Wi-Fi standard does it support?
It supports 802.11a/b/g/n/ac and 802.11ac Wave 2 with 4×4:4 MU-MIMO. :contentReference[oaicite:20]{index=20}
How many users is the AR169EGW-L recommended for?
Huawei specifies approximately 50 recommended users for the AR169EGW-L. :contentReference[oaicite:21]{index=21}
Does it have a USB port?
Yes. It includes 1 × USB 3.0 port, compatible with USB 2.0. :contentReference[oaicite:22]{index=22}
Is the AR169EGW-L suitable for branch offices?
Yes. Its combination of multiple WAN technologies, integrated Wi-Fi, LTE backup and enterprise security makes it well suited to branch offices, SMBs and remote enterprise locations.
