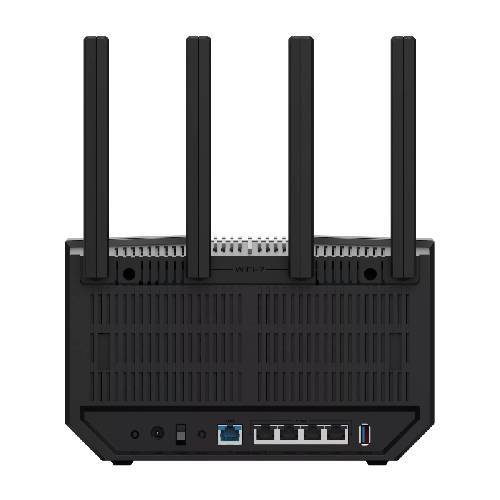

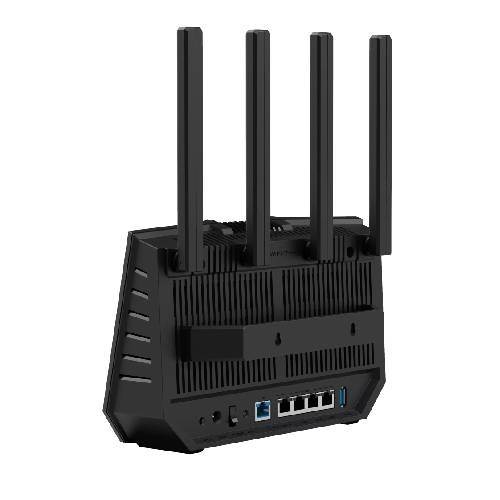

ASUS RT-BE92U BE9700 Tri-Band Wi-Fi 7 Router with 10G WAN/LAN Port

The ASUS RT-BE92U BE9700 Tri-Band Wi-Fi 7 Router is a high-performance wireless router designed for modern homes, gaming environments, home offices and demanding network applications. Powered by Wi-Fi 7 technology, it combines three wireless frequency bands, multi-gigabit Ethernet connectivity and advanced network management features to support fast, responsive and reliable connectivity.

With a combined BE9700-class wireless rating, a dedicated 10Gbps WAN/LAN port, additional 2.5Gbps Ethernet ports and ASUS AiMesh compatibility, the RT-BE92U provides a flexible networking solution for users who need high-speed wireless access and fast wired connections.

Wi-Fi 7 Tri-Band Performance

The ASUS RT-BE92U supports the Wi-Fi 7 (IEEE 802.11be) standard and operates across the 2.4GHz, 5GHz and 6GHz frequency bands. Its advertised BE9700 wireless class combines the following maximum theoretical data rates:

• 2.4GHz: Up to 1032Mbps
• 5GHz: Up to 2882Mbps
• 6GHz: Up to 5764Mbps

These figures represent theoretical combined band capabilities rather than the speed available to one device. Actual performance depends on client compatibility, distance, interference, regional wireless regulations and network configuration.

Multi-Link Operation (MLO)

Wi-Fi 7 introduces Multi-Link Operation (MLO), which allows compatible devices to use multiple wireless links to improve connection efficiency, responsiveness and reliability. The RT-BE92U supports modern Wi-Fi 7 capabilities for demanding activities such as online gaming, video conferencing, large file transfers and high-resolution streaming. Actual MLO behavior depends on the connected device and its supported configuration.

320MHz Channel Bandwidth and 4096-QAM

The RT-BE92U supports wide wireless channel bandwidths of up to 320MHz and 4096-QAM modulation. These Wi-Fi 7 technologies can increase potential throughput when compatible devices, suitable signal conditions and permitted regional spectrum are available. OFDMA and beamforming further support efficient wireless communication and signal management.

10G and 2.5G Multi-Gigabit Ethernet

Beyond wireless connectivity, the RT-BE92U offers high-speed wired networking for computers, NAS storage, gaming systems, multi-gigabit switches and compatible internet services.

• 1×10Gbps WAN/LAN: For a compatible high-speed internet connection or wired network device.
• 1×2.5Gbps WAN/LAN: Provides another multi-gigabit connection for flexible network configuration.
• 3×2.5Gbps LAN: Supports high-speed local wired connections for compatible devices.
• 1×USB 3.2 Gen 1: Supports compatible USB peripherals and supported router functions.

The WAN/LAN ports can be assigned according to the router's supported configuration. Multi-gigabit throughput requires compatible connected equipment and network services.

Quad-Core Processing and Hardware

The router features a 2.0GHz quad-core processor, 1GB DDR4 RAM and 256MB flash memory. This hardware supports routing, wireless management, security functions and multiple connected devices. Four external antennas provide the physical wireless antenna system for the router's three frequency bands.

ASUS AiMesh for Expandable Coverage

ASUS AiMesh allows the RT-BE92U to work as a primary router or a compatible AiMesh node within an expandable mesh network. Users can add compatible ASUS AiMesh devices to improve coverage across larger homes or spaces with difficult wireless coverage. Actual coverage depends on building materials, layout, interference and the placement of the router and mesh nodes.

The router also supports multiple operating modes, including wireless router, access point, repeater, media bridge and AiMesh node modes.

Network Security and Parental Controls

The RT-BE92U includes ASUS network security and management features designed to help users protect connected devices and control internet access. Supported capabilities include AiProtection security functions, firewall controls, VPN features, parental controls and WPA-family wireless security. Available features may depend on firmware version and configuration.

These tools are useful for households with multiple users, remote workers and users who want additional control over connected devices and network access.

Technical Specifications

Specifications are based on ASUS technical documentation.

Applications

• High-speed home and office Wi-Fi networks
• Wi-Fi 7 gaming and low-latency applications
• 4K and 8K video streaming on compatible devices
• Multi-gigabit fiber broadband connections
• NAS storage and high-speed local file transfers
• Smart homes with numerous connected devices
• Home office, remote work and video conferencing
• Expandable ASUS AiMesh wireless networks

Installation and Compatibility

Connect the router's WAN/LAN port to a compatible modem, ONT or internet connection according to the network setup. Configure the internet connection and wireless network through the ASUS router management interface, then connect wireless and wired devices as required.

For the best Wi-Fi 7 experience, use compatible client devices. Older Wi-Fi devices can connect using supported backward-compatible wireless standards, although they will not receive all Wi-Fi 7 benefits. Access to the 6GHz band depends on local regulations and device support.

Why Choose the ASUS RT-BE92U?

The ASUS RT-BE92U combines Wi-Fi 7 tri-band networking, multi-gigabit Ethernet, AiMesh expansion and advanced security features in one router. Its 10Gbps WAN/LAN port is particularly useful for compatible high-speed internet connections and wired network devices, while the three wireless bands provide flexibility for modern connected homes and demanding network workloads.

Frequently Asked Questions

What is the ASUS RT-BE92U?

The ASUS RT-BE92U is a BE9700-class tri-band Wi-Fi 7 wireless router with 10Gbps and 2.5Gbps Ethernet connectivity.

What is the maximum wireless speed?

ASUS lists theoretical maximum data rates of 1032Mbps on 2.4GHz, 2882Mbps on 5GHz and 5764Mbps on 6GHz. These are band-level theoretical rates, not guaranteed speeds for an individual device.

Does the RT-BE92U have a 10G port?

Yes. It has one 10Gbps WAN/LAN port, one 2.5Gbps WAN/LAN port and three 2.5Gbps LAN ports.

Does the router support Wi-Fi mesh networking?

Yes. It supports ASUS AiMesh and can operate as a primary AiMesh router or a compatible mesh node.

Can older Wi-Fi devices connect to the RT-BE92U?

Yes. It supports multiple earlier wireless standards, including Wi-Fi 6E, Wi-Fi 6, Wi-Fi 5 and older standards. The connection speed depends on the capabilities of each client device.

Is the ASUS RT-BE92U suitable for fiber broadband?

Yes. It can be used with a compatible fiber ONT or modem. Its 10Gbps WAN/LAN interface can support suitable multi-gigabit network configurations, subject to the internet service and connected equipment.
