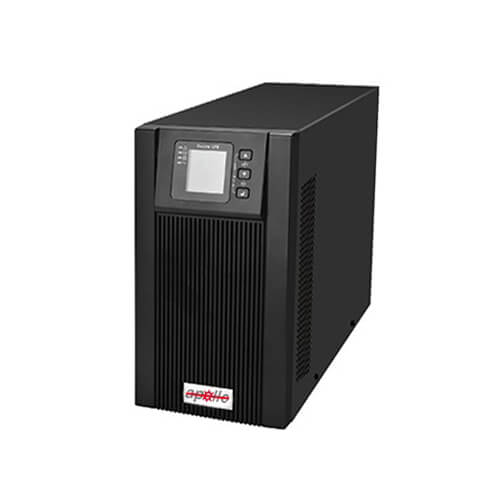

Apollo 3KVA Online UPS | 2300HS
Apollo 3kVA Online UPS comes with Single Phase input power: from 110Vac ~ 290Vac, DSP control technology with an input power factor of >0.98% (Full Load). The Apollo series UPS provides high-performance single-phase input and Single-Phase output with galvanic isolation via a high-performance inverter output transformer, delivering high-quality power permanently. In this Online UPS advanced diagnostics and unit, the information allows users to monitor system parameters and alarms, check the status of the battery, and provide access to the history of events through the system software or multi-language screen.
This new Apollo series Online UPS features double-conversion online UPS, Single-Phase input/single-phase output, DSP control technology, Galvanic insulation via an output transformer, reduced harmonic distortion, RFI filter, and Acoustic and luminous signaling. This UPS reduced the harmonic distortion of the output signal. In this online UPS, Extended battery options are available.
| Capacity |
3.0 KVA |
| Load Capacity |
<110% load Continuous
110-125% load 12 minutes
125-150% load 10 minutes
>150% load: bypass |
| Input Voltage |
Single Phase, 110Vac ~ 290Vac |
| Output Voltage |
220Vac |
| Frequency (Battery Mode) |
50/ 60Hz |
| Noise Level |
<53dB - 65dB at a 1-meter distance |
| Battery |
DC Voltage: 96VDC
Backup time: 15 - 30 minutes depending on the Load
Recharge time: 5 ~ 8 Hours |
| Alarm |
Audio Alarm: Keep 90 Seconds at a time interval of 4 seconds. Battery Low: Auto Shutdown upon complete discharge of the battery and auto turn-on upon recovery of utility power. Fault: Continuous Alarming |
| Input Features |
| Frequency |
50Hz (60Hz on Request) +/- 5% |
| Power Factor |
>0.98% (Full Load) |
| Output Features |
| Backup Time |
15 - 30 minutes, depending on the Load |
| Voltage Range |
220Vac +/- 5% |
| Power Factor |
0.8 ~ 1 (lagging) |
| Type of Wave |
Pure Sinewave THD < 3% |
What is the price of the Apollo 3KVA Online UPS in Bangladesh?
The latest price of the Apollo 3KVA Online UPS 2300HS in Bangladesh is 41,500৳. You can buy the Apollo 2300HS 3KVA Online UPS at the best price from our website or visit our showroom. Stay connected with our
