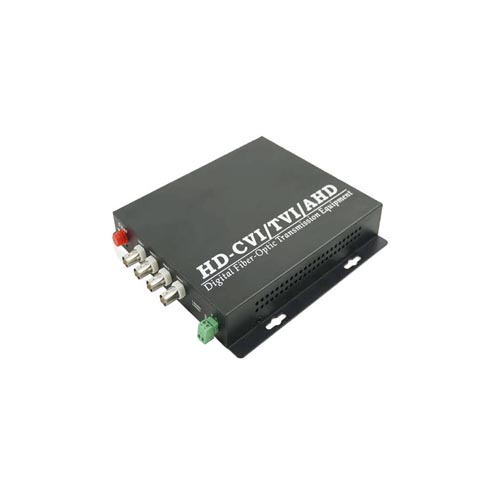

4 Channel 720P-1080P HD-AHD HD-CVI HD-TVI CVBS Fiber Converter

4 Channel 720P-1080P HD-AHD HD-CVI HD-TVI CVBS Fiber Converter
-7 %
4 Channel 720P-1080P HD-AHD HD-CVI HD-TVI CVBS Fiber Converter
  • Price: 13,500৳
  • special price: 12,500৳
  • Status: In Stock
  • Brand: Others
  • Model: Model
Based on 0 reviews. - Write a review
12,500৳
13,500৳
Ex Tax: 12,500৳
WhatsApp Inquiry
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

    • Brand: Other
    • Model: HD-AHD HD-CVI HD-TVI CVBS
    • Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
    • Type: Fiber Video Converter
    • Warranty:  No Warranty
4 Channel 720P-1080P HD-AHD HD-CVI HD-TVI CVBS Video Fiber Converter: HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopts the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HD-CVI, HD-TVI, or CVBS composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. 4Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 4 channels of AHD, HD-CVI, HD-TVI, or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environments. It supports input video formats such as 25/30/50/60fps@720P & 25/30fps@1080P. Features ►    Non-compression coding technology ►    Automatically identify formats of input videos. ►    Support transmission of combined AHD, HD-CVI, HD-TVI, or CVBS signal and controlling PTZ data RS485 simultaneously through fiber optical cable  ►    Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc. ►    Through LED indicators to inform its functional mode  ►    Industrial wide range of operational temperature ►    Plug and play, simple installation. ►    Wide-range temperature application: -15ºC ~65ºC Application ►    City traffic monitoring system ►    Public security, safe city monitoring system ►    Highway security protection, charging system ►    Building, campus monitoring net ►    Industrial monitoring (airport, chemical industry, steel, oil, railway, water conservancy, mine, etc) ►    Military monitoring (storehouse, frontier defense, guard, national defense, etc) ►    Electric power, oilfield, television program transmission system ►    Gymnasium (live video, audio transmission) Technical Indexes
Optical Fiber
Wavelength WDM:1310nm/1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity -26dBm
Optical connector FC(default),STorSC(optional)
Transmission Distance 0~550M (MM)  /  0~80KM  (SM) (Default distance is 20Km)
Video
Number of Channels 4 CH
Input/output impedance 75 Ohm (unbalanced)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 50MHz
Sampling Bandwidth 8bit
Sampling Frequency 108MHz
Signal-to-noise ratio >67dB
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain <±1.5%
Differential Phase <±1°
Connector BNC
Supporting video pixel/Resolution 1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX
PTZ Data
Protocol Default :RS485 (RS232/RS422 Optional)
Number of channels 1
Connector 3pins Terminal Blocks
Data Rate 0-200Kbps
Directions Default: Simplex from Rx to Tx (BIDI duplex optional)
Environmental
Operating Temperature: -15°C to 65°C (5°F to 149°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 100,000 hrs
Electrical and Mechanical
Input Power: DC5V 2A
Power Consumption: ≤6W
LED Indicators:
Fiber Fiber Status
Video LED1, LED2, LED3, LED4
Data Data status
PWR Power Status
Dimensions (WxDxH): 167 x 172 x 28 mm (720P) 167 x 172 x 28 mm (1080P)
Weight: 1.5Kg (720P) 1.5KG(1080P)
Casing: Metal Case
Mounting Options: Wall-mount/Rack-mount
Regulatory Approvals
ISO9001
CE, RoHS, and FCC

What is the price of the 4 Channel 720P-1080P HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter in Bangladesh?

The latest price of the 4 Channel 720P-1080P HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter in Bangladesh is 12,500৳. You can buy the 4 Channel 4-in-1 Video Fiber Converter at the best price from our website or visit our showroom. Stay connected with our what's Page or Facebook Page.
