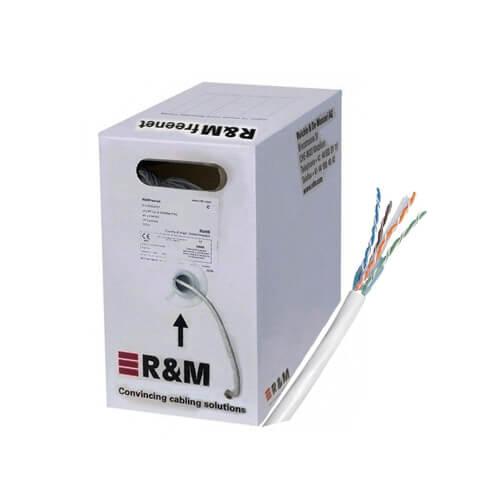

R&M R795138 Cat-6 U/UTP 305 Meter Network Cable

-3 %

Price: 16,300৳
special price: 15,800৳
Status: In Stock
Brand: R&M
Model: CAT6 U/UTP FRPVC

Based on 0 reviews. - Write a review

15,800৳

16,300৳

Ex Tax: 15,800৳

WhatsApp Inquiry

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

This product has a minimum quantity of 100

অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

- Cable Length: 305 Meter Roll
- Transmission Frequency: 250Mhz
- Part No: R795138GREY/R795138YL/R795138BL
- Outer Jacket: Flame retardant-PVC; Conductor: Bare Solid Copper

Description
Review

Description :

R&M R795138 Cat-6 U/UTP 305 Meter Network Cable:

R&M Cat 6 U /UTP Cable Box comes with Bare solid copper Conductor, HDPE, overall Ã˜ 0.92Â±0.02 mm, 2 wires to the pair Twisting, 4 pairs to the core with cross separator Cable lay up, PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal. It is ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 Standard. This Cable Box also featured U/UTP Cat.6 250MHz Cable designation, 5.8Â±0.3mm Outer diameter, 13.0kg nominal/305m Weight, 11Kg nominal Pulling Pressure, B Segregation class with > 16.5N/mmÂ² Tensile Strength.

Connection Class
Standard	ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Physical Specs
Color	Yellow Blue Grey
Cable Details
Conductor	Bare solid copper
Insulation	HDPE, overall Ø 0.92±0.02 mm
Twisting	2 wires to the pair
Cable Lay-Up	4 pairs to the core with cross separator
Pair Screen	Non
Overall Screen	Non
Sheath	PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal
Cable Information
Application	Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards	ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Fire Rating	Flame retardant- PVC
Technical Detail
Cable Designation	U/UTP Cat.6 250MHz
Packaging	Drum 305 m
Outer Diameter	5.8±0.3mm
Weight	13.0kg nominal
Pulling Pressure	11Kg nominal
Segregation Class	B
Tensile Strength	> 16.5N/mm²
Bending Radius	≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load)
Temperature ange	During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C

What is the price of the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable in Bangladesh?

The latest price of the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable in Bangladesh is 15,800৳. You can buy the R&M Cat6 U/UTP 305 Meter Network Cable at the best price from our website or visit our showroom. Please stay connected with our What’s Page or Facebook Page.
