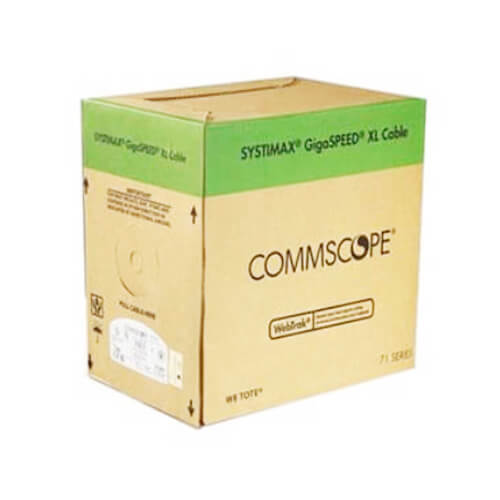

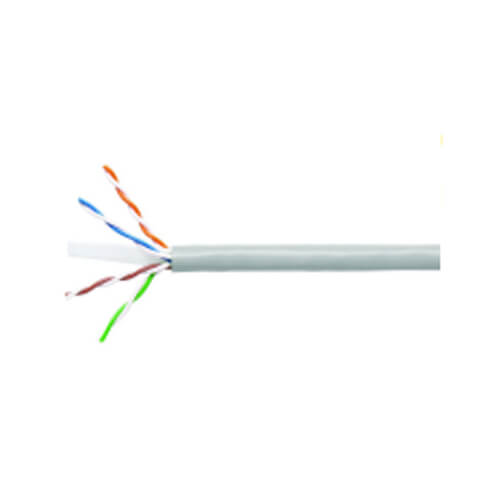

Systimax Cat6 23AWG U/UTP Cable | 700211931

Systimax Cat6 23AWG U/UTP Cable | 700211931:

Systimax UTP CAT-6 Networking LAN cable has Giga speed XL 1071E ETL, non-plenum, slate jacket, 4 pair count and WE tote box.

• Product Number 1071E
• ANSI/TIA Category 6
• Cable Component Type Horizontal
• Cable Type U/UTP (unshielded)
• Conductor Type singles Solid
• Conductors, quantity 8
• Jacket Color Slate
• Pairs, quantity 4
• Pulling Tension, maximum 11.34 kg | 25 lb
• Separator Type Bisector
• Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Dimensions

• Cable Length 304.8 m | 1000 ft
• Diameter Over Insulated Conductor 1.029 mm | 0.041 in
• Diameter Over Jacket, nominal 5.893 mm | 0.232 in
• Jacket Thickness 0.559 mm | 0.022 in
• Conductor Gauge singles 23 AWG

Electrical Specifications

• dc Resistance Unbalance, maximum 5 %
• dc Resistance, maximum 7.61 ohms/100 m | 2.32 ohms/100 ft
• Dielectric Strength, minimum 1500 Vac | 2500 Vdc
• Mutual Capacitance at Frequency 5.6 nF/100 m @ 1 kHz
• Nominal Velocity of Propagation (NVP) 69 %
• Operating Frequency, maximum 300 MHz
• Operating Voltage, maximum 80 V

Material Specifications

• Conductor Material Bare copper
• Insulation Material Polyolefin
• Jacket Material PVC
• Separator Material Polyolefin

What is the price of the Systimax Cat6 23AWG U/UTP Cable | 700211931 in Bangladesh?

The latest price of the Systimax Cat6 23AWG U/UTP Cable | 700211931 in Bangladesh is 13,500৳. You can buy the Systimax Cat6 23AWG UTP Cable at the best price from our website or visit our showroom. Stay connected with our what’s Page or Facebook Page.
